13SCU200 INSITE ENERGY MANAGEMENT SYSTEM
2.3.I/O modules
The range of I/O modules is composed of:
• Input Module with 4 inputs
• Output Module with 4 outputs
• Input and Output Module with 2 inputs and 2 outputs

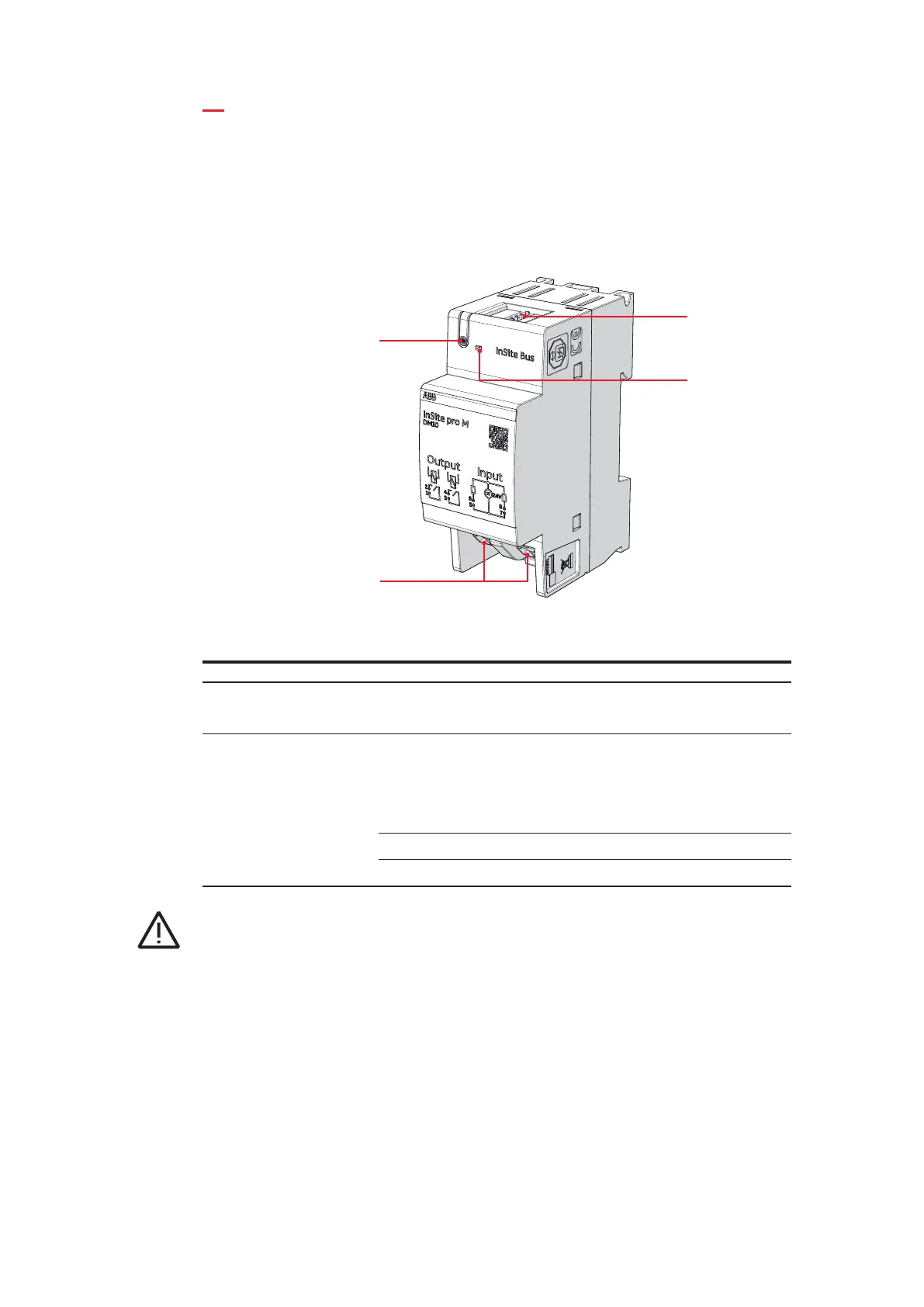

LED
InSite-bus
Interface
Push button
Screwless
terminals
• Module LED Status:
Display Function
On
Module is online and in normal operation mode. There is a
feature in the configuration to switch off the LED after a
specified time.
Off
Module is not connected to InSite Bus or LED is switched off in
the configuration.
Module is not assigned.
Module in assign process or in “setting/I/O module” mode. This
module is the module corresponding to the yellow-marked row
on the screen for webserver configuration.
Flashing slowly (1Hz)
Flashing fast (2Hz)
Warning: All I/O modules with version V3 or above are compatible SCU 200 (check on the left side code
OXXX or above).
