SCU200 INSITE ENERGY MANAGEMENT SYSTEM

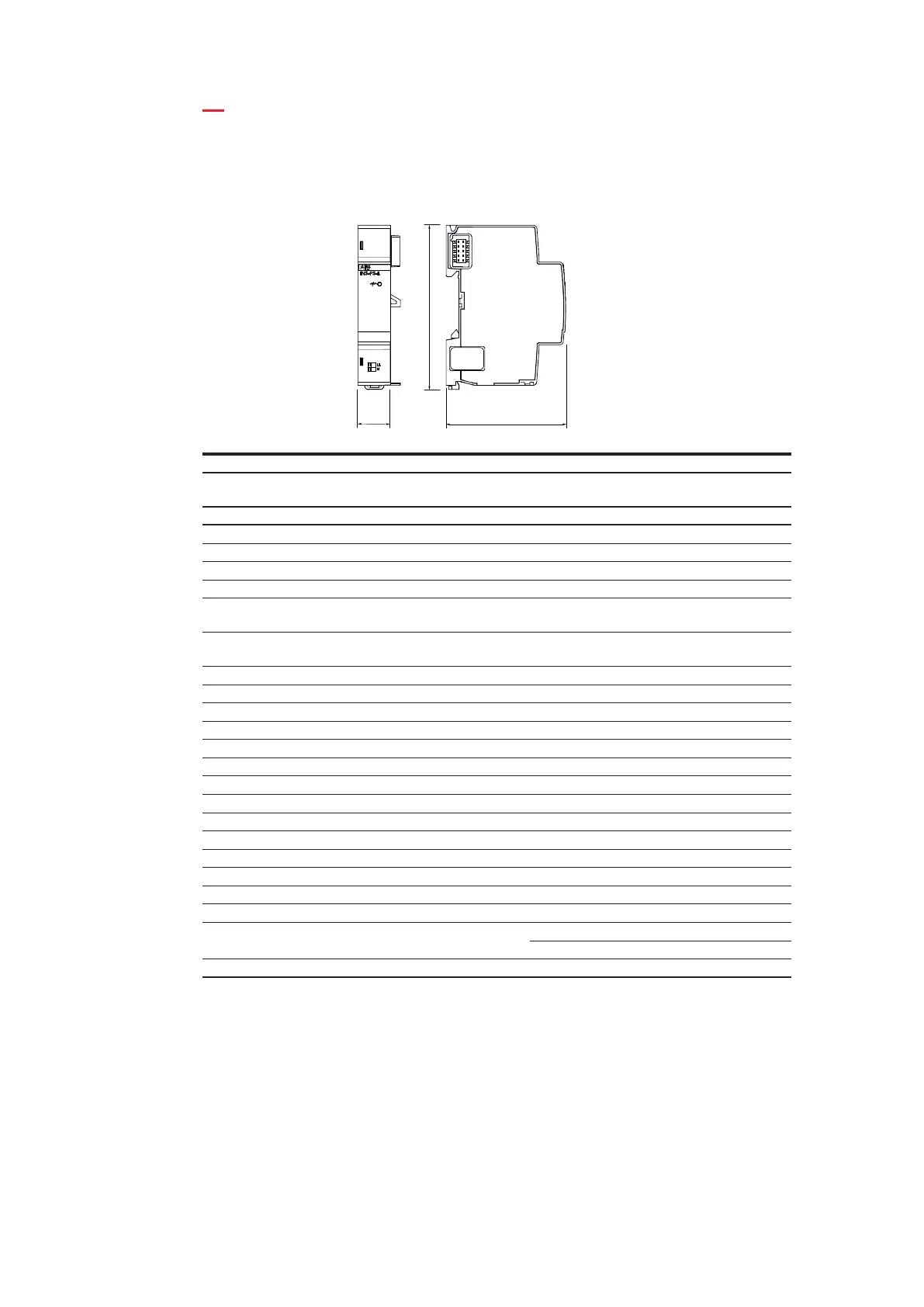

3.3.Overall dimensions and technical data - InSite modules
3.3.1.Power supply module
Technical feature Unit Description
Supply voltage [V]
100...240 VAC +/-10%
110...350 VDC (tolerance included)
Connection
Solid conductor [mm
2
] 0.14 ... 1.5
AWG solid conductor [AWG] 28-16
Fine-stranded conductor [mm
2
] 0.14 ... 1.5
AWG fine-stranded conductor [AWG] 26-14
Fine-stranded conductor with
insulated ferrule
[mm
2
] 0.25 ... 0.75
Fine-stranded conductor with
uninsulated ferrule
[mm
2
] 0.25 ... 1.5
Strip length [mm] 8 ... 9
Connection type Screwless
Power output [W] 10 nominal / 15 boost
Max input Current [mA] 180
Frequency [Hz] 50/60 ± 5%
Power input (L1-N) [W] 18 max
Mounting method 35mm DIN rail (DIN 5022)
Degree of protection IP20
Dimensions [mm] 17.5x87.0x64.9 (1M)
Impact test IK06
Weight [g] 77
Operating temperature [°C] - 25... + 60
Storage temperature [°C] - 40... + 85
Operating altitude [m] 0… 2000
Standards
IEC 61010-1
IEC 61326-1
Declarations CE, UKCA
