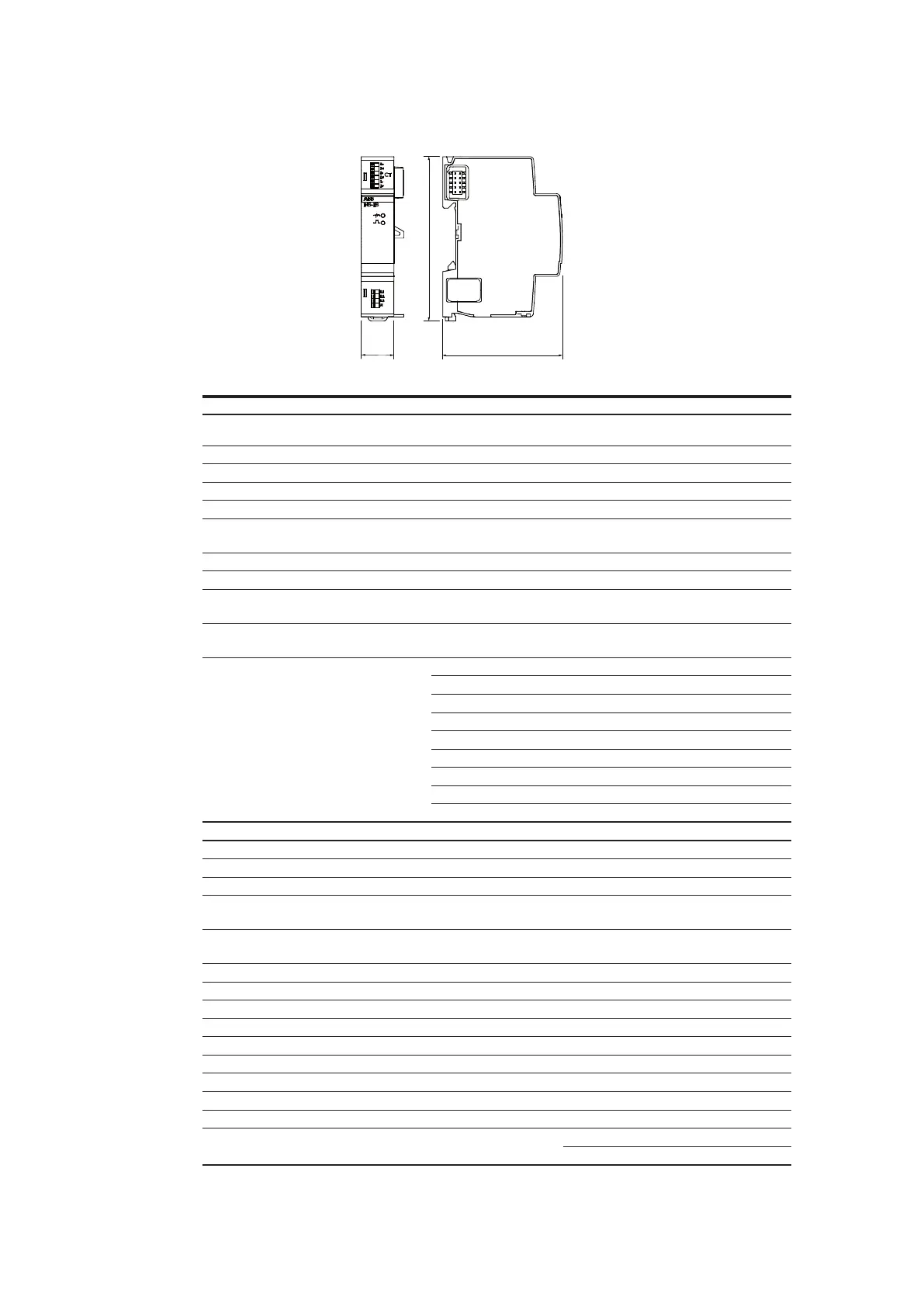

24
87
17,5
65
SCU200 INSITE ENERGY MANAGEMENT SYSTEM
3.3.2.Energy meter module
Technical feature Unit Description
Supply voltage [VDC] Supplied by the InSite modular bus
Connection InSite modular bus
Power consumption [W] 0,7
Network type Three phase + N
Voltage input connection Screwless terminal block
Voltage specified measurement
range (full accuracy)
[VAC] 80-240 (L1,2,3-N)
Voltage limit range of operation [VAC] 0 - 277
Frequency [Hz] 50 / 60
Current transformer supported
secondary side
[mA]
nom.: 0 - 40
max.: 48
Current specified measurement
range (full accuracy)
[mA] 1 - 40
Accuracy (@25 °C, INS-E3 only)
Voltage 0,5%
Current 0,5%
Active power 1%
Apparent power 1%
Reactive power 1%
Power factor 1%
Active Energy 1%
Apparent Energy 1%
Reactive Energy 1%
Conductor cross-section
Solid/fine-stranded conductor [mm
2
] 0.14…1.5
AWG solid conductor [AWG] 28-16
AWG fine-stranded conductor [AWG] 26-14
Fine-stranded conductor with
insulated ferrule
[mm
2
] 0.25 … 0.75
Fine-stranded conductor with
uninsulated ferrule
[mm
2
] 0.25 … 1.5
Strip length [mm] 8…9
CTS cable length [m] 0,5
Mounting method 35mm DIN rail (DIN 5022)
Degree of protection IP20
Dimensions [mm] 17.5x87.0x64.9 (1M)
Weight [g] ~52
Oparting temperature [°C] -25... +60
Storage temperature [°C] -40... +85
Operating altitude [m] 0… 2000
Standards
IEC61010-1
IEC 61326-1
