ABB SCU200 - Energy Meter Module

15
CT1 + CT1 - CT2 + CT2 - CT3 + CT3 -
CT1 + CT1 - CT2 + CT2 - CT3 + CT3 -
CT1 + CT1 - CT2 + CT2 - CT3 + CT3 -
SCU200 INSITE ENERGY MANAGEMENT SYSTEM

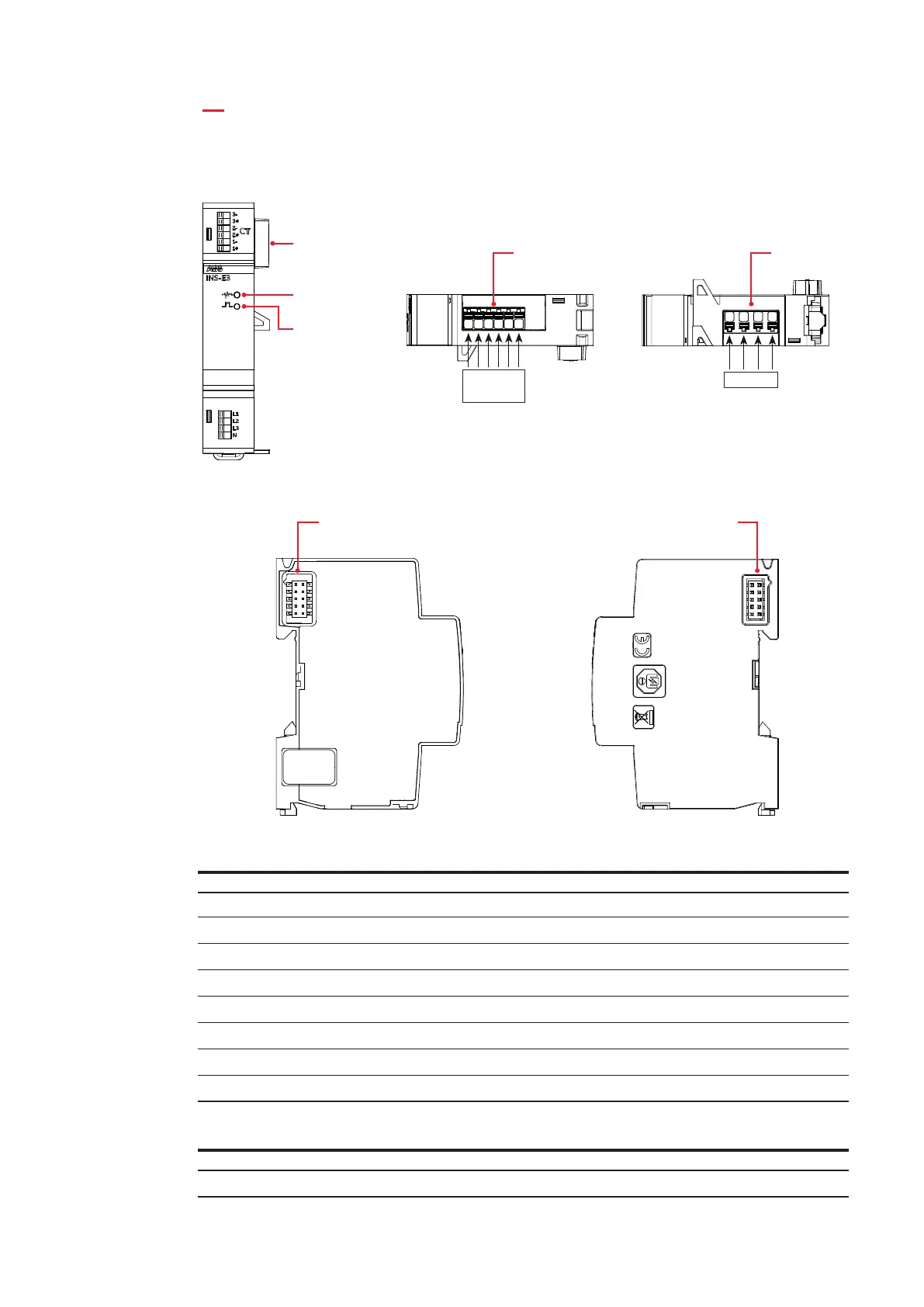

2.5.Energy meter module
• LED status
Display Function
Green on Device is on, Modbus id assigned
Green flashing fast Data traffic with SCU200
Green flashing slowly No Modbus ID assigned
Orange flashing fast N/A
Orange flashing slowly Firmware updates ongoing
Orange on Booting
Red on System or booting error
Red on flashing Bootloader mode
• LED EM
Display Function
Green flashing fast 1kWh pulse blinking
CT1 + CT1 - CT2 + CT2 - CT3 + CT3 -
L1 L2 L3 N
Modular bus
connector (output)
Modular bus
connector (output)
Status LED
kWh pulses LED
Modular bus
connector (input)
Voltage
measurement
L1, L2, L3, N
CTS current transformers for
CT1 (L1), CT2 (L2), CT3 (L3)
FRONT VIEW TOP VIEW BOTTOM VIEW
LATERAL VIEWS
