ABB SCU200 - I;O Modules

36
Input
signal/auxilliary
contacts
InSite bus
1
2
3
4
5
6
7
8
Output
+24 ... 230 V
Neutral
1
2
3
4
5
6
7
8
SCU200 INSITE ENERGY MANAGEMENT SYSTEM
4.4.2.I/O Modules
• Assembly on 35mm DIN-Rail

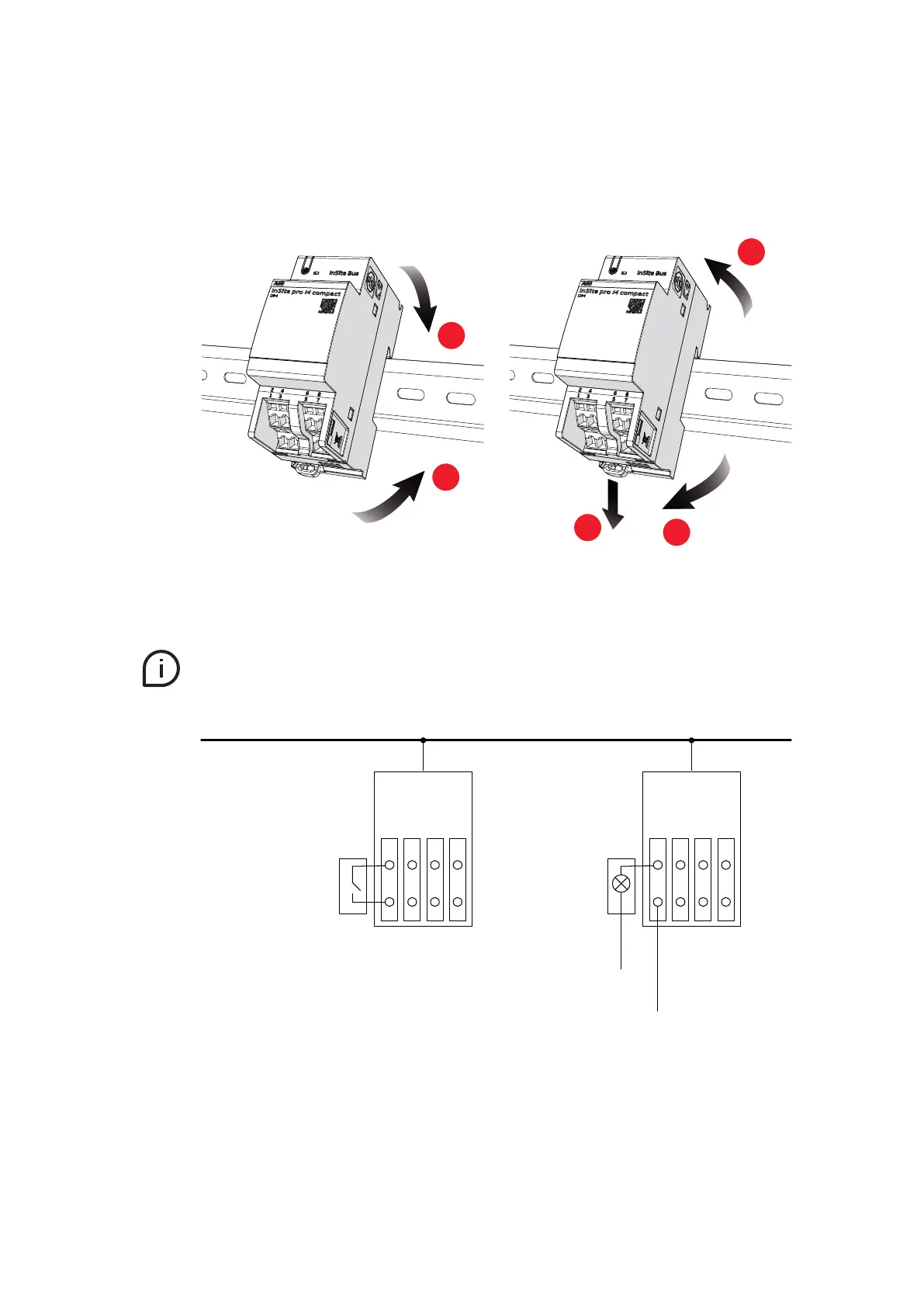

To assemble of the control unit, perform steps 1 and 2. The device can be mounted horizontally or
vertically. To disconnect, perform steps 3, 4 and 5.
• Wiring
Connection of input and output channels to accessories and external devices is represented in the figure
below.
For sake of representation, connection to signal/auxiliary contacts and to loads is shown.
1
3
4
5
2
