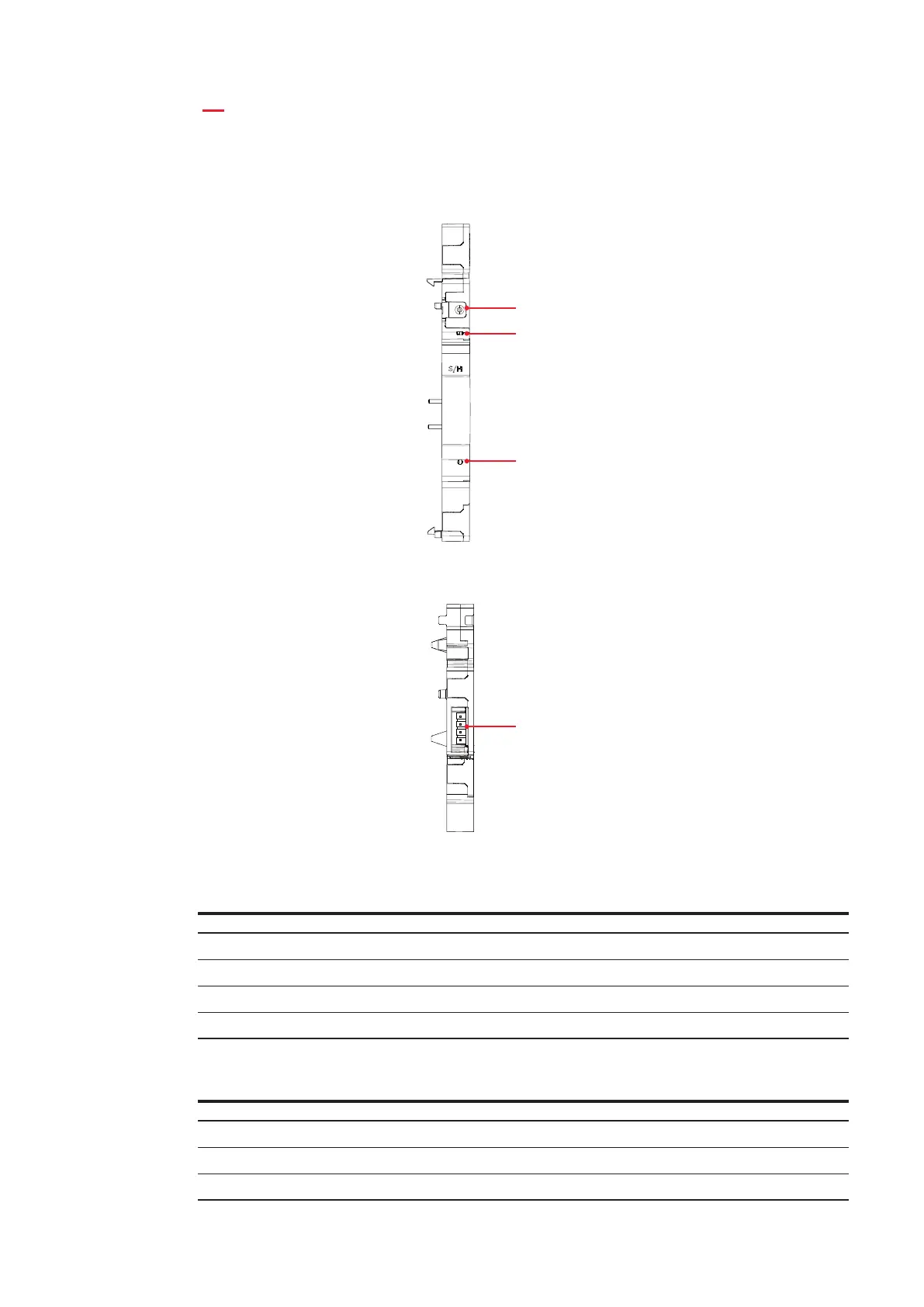

18 SCU200 INSITE ENERGY MANAGEMENT SYSTEM
Assignment button
Connection LED
Status LED
Modular BUS
connector
FRONT VIEW
TOP VIEW
2.7.Smart accessories
2.7.1.Smart signal/auxiliary contact
• LED status
Display Function
Blue on Assignment ok
Off No power supply
Slow blinking Normal mode, no Modbus assigned
Fast blinking Query function
• LED Connection
Display Function
Orange on Main device tripped
Off Main device normal or toggle switch
Slow blinking Normal function on
