19SCU200 INSITE ENERGY MANAGEMENT SYSTEM
2.8.InSite accessories

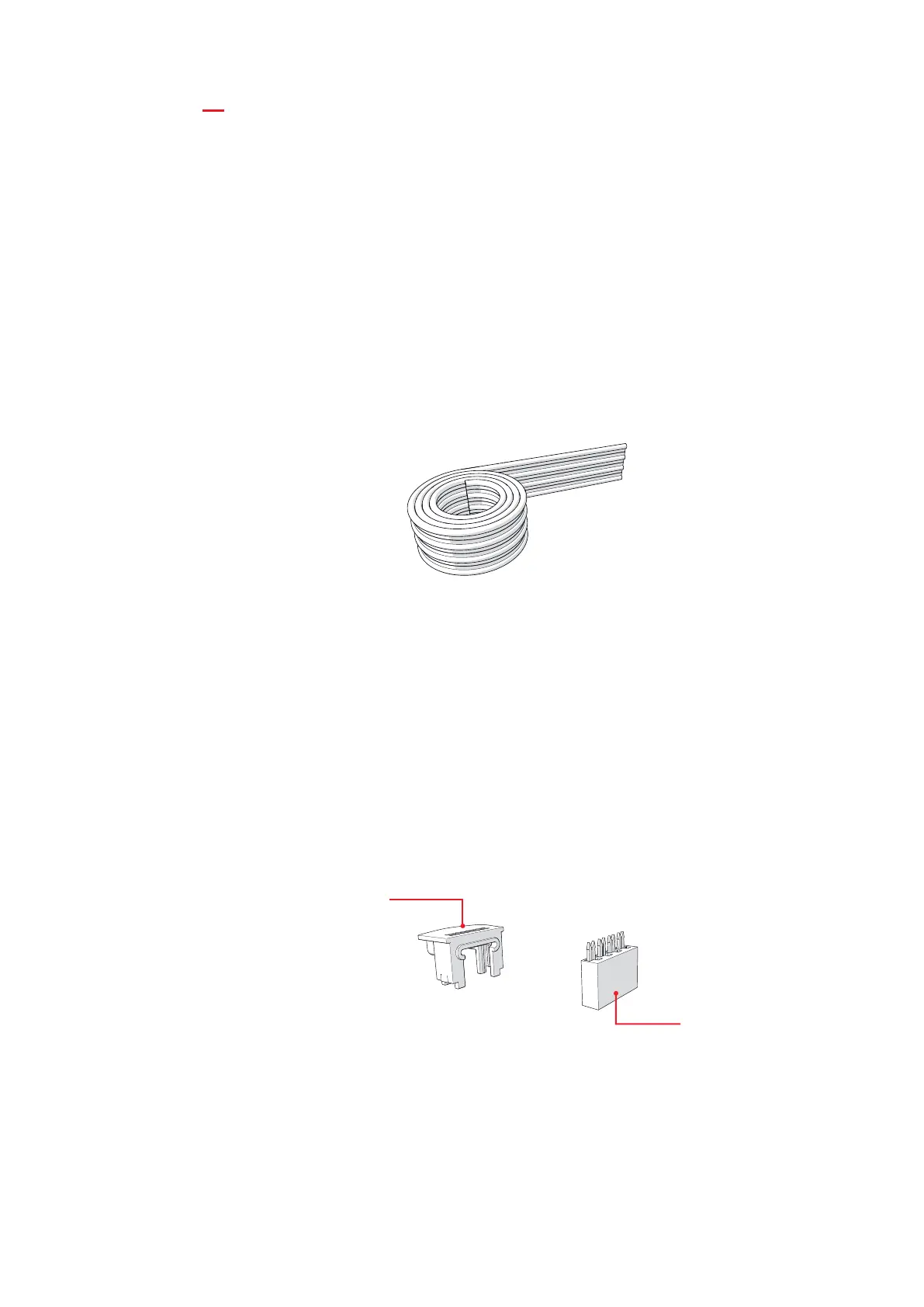

• InSite Flat Cable
The INS105 flat cable is a 4-pin cable for connecting multiple sensors and I/O modules to one control unit.
Please take into account that possible cable length of the InSite flat cable depends on the number and
shape of sensors, and on the number of I/O modules connected.
35 x Connector
35 x Connector housing
• Do not exceed a total flat cable length of 32m for each InSite-Bus lines of each control unit.
• Flat cables longer than approx. 15m could require a 120Ω terminating resistor between the two inner
wires at the far end.
• For the flat cable, please consider:
• Use within closed housings only.
• Keep a distance of min. 5.5 mm to uninsulated live parts.
• Where necessary, additional protection against mechanical stress or UV radiation must be ensured.
• Connector set
The INS135 connector set contains connector housings and connectors to connect the flat cable to the
sensors.
