35SCU200 INSITE ENERGY MANAGEMENT SYSTEM

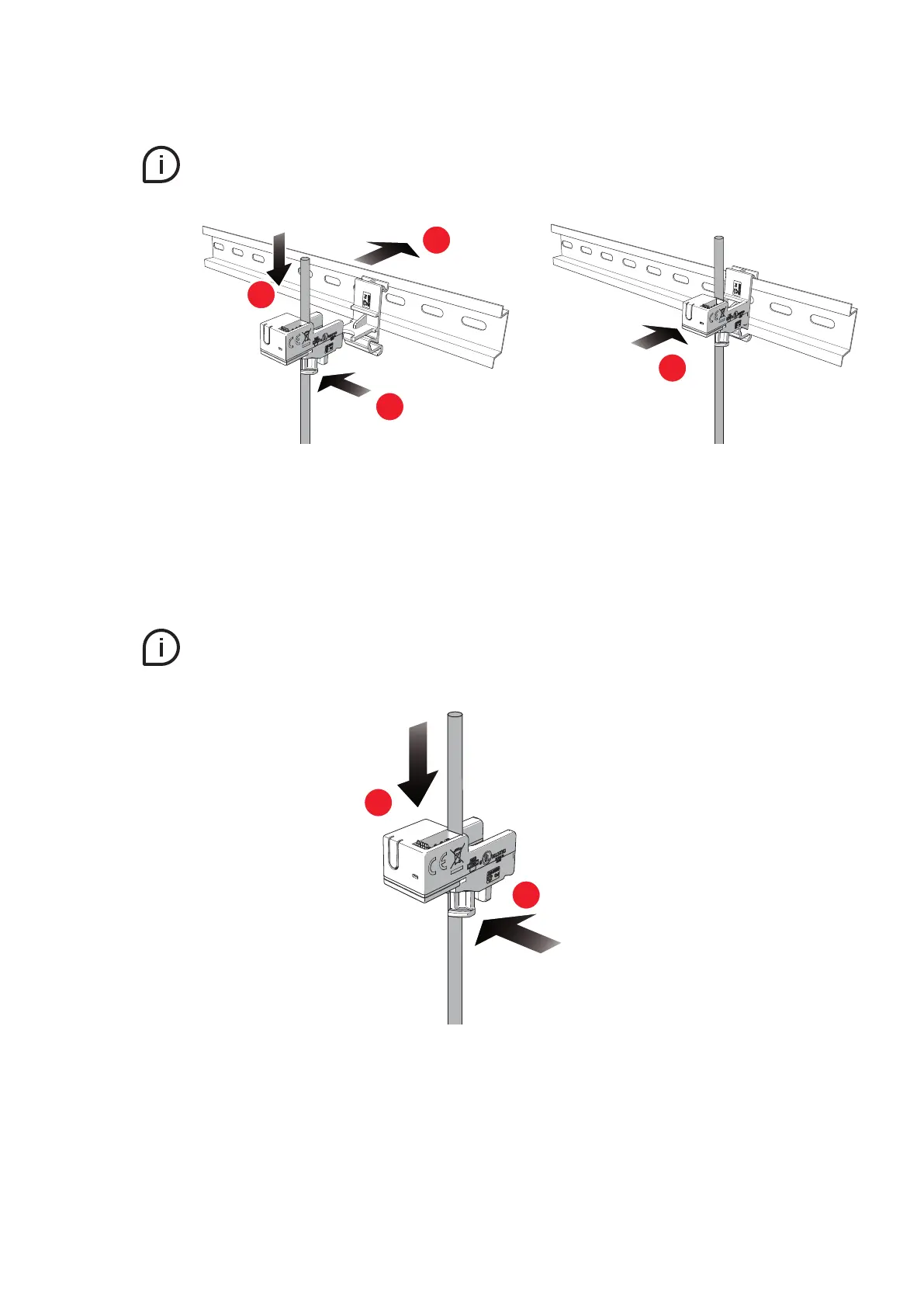

• Mounting Sensors on DIN-Rails
Sensors can be mounted on all 35-mm DIN-Rails (DIN50022).
The cable should not exert force on the sensor, otherwise measuring errors may occur.
1. Snap in the bracket on the DIN-rail.
2. Insert the cable into the installed device through the opening on the sensor. The cable has to be
insulated within the sensor.
3. Fix the cable with a cable tie.
4. Snap in the sensor on the bracket.
• Mounting of cable tie sensors
The cable should not exert force on the sensor, otherwise measuring errors may occur.
1. Insert the cable into the installed device through the opening on the sensor.
2. Fix the cable with a cable tie.
1
1
3
4
2
2
