9.11 Fitting the diffuser

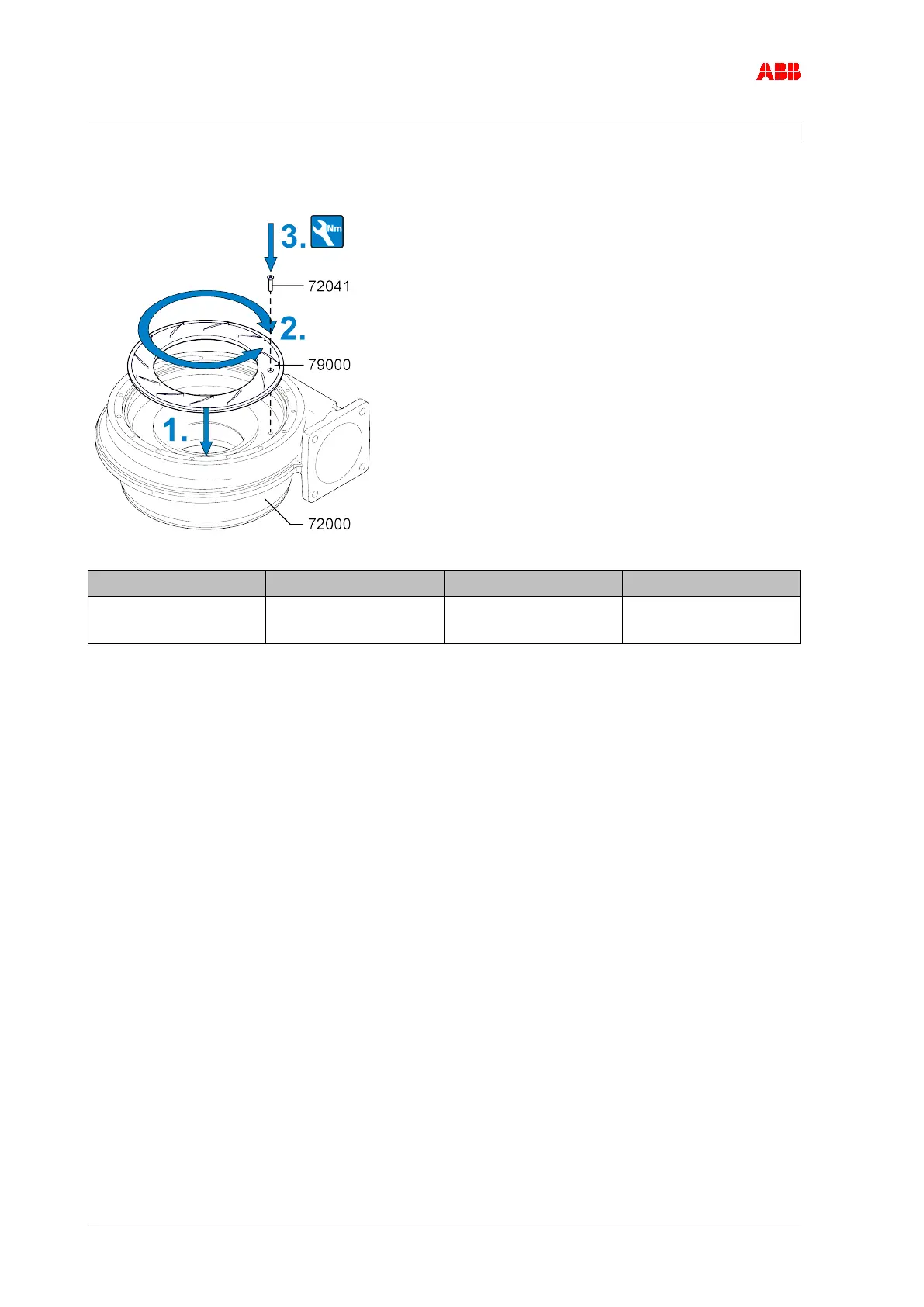

Figure 30: Fitting the diffuser
Part number
TPS44
TPS48
TPS52
72041 M5
5 Nm
M5
5 Nm
M6
10 Nm
Table 35: Tightening torque (72041)
1. Position the diffuser (79000) in the compressor casing (72000).
2. Rotate the diffuser until its bore is aligned with the bore in the compressor casing.
3. Fit and tighten screw (72041).
