9.14 Fitting the turbine casing
Fitting the turbine casing

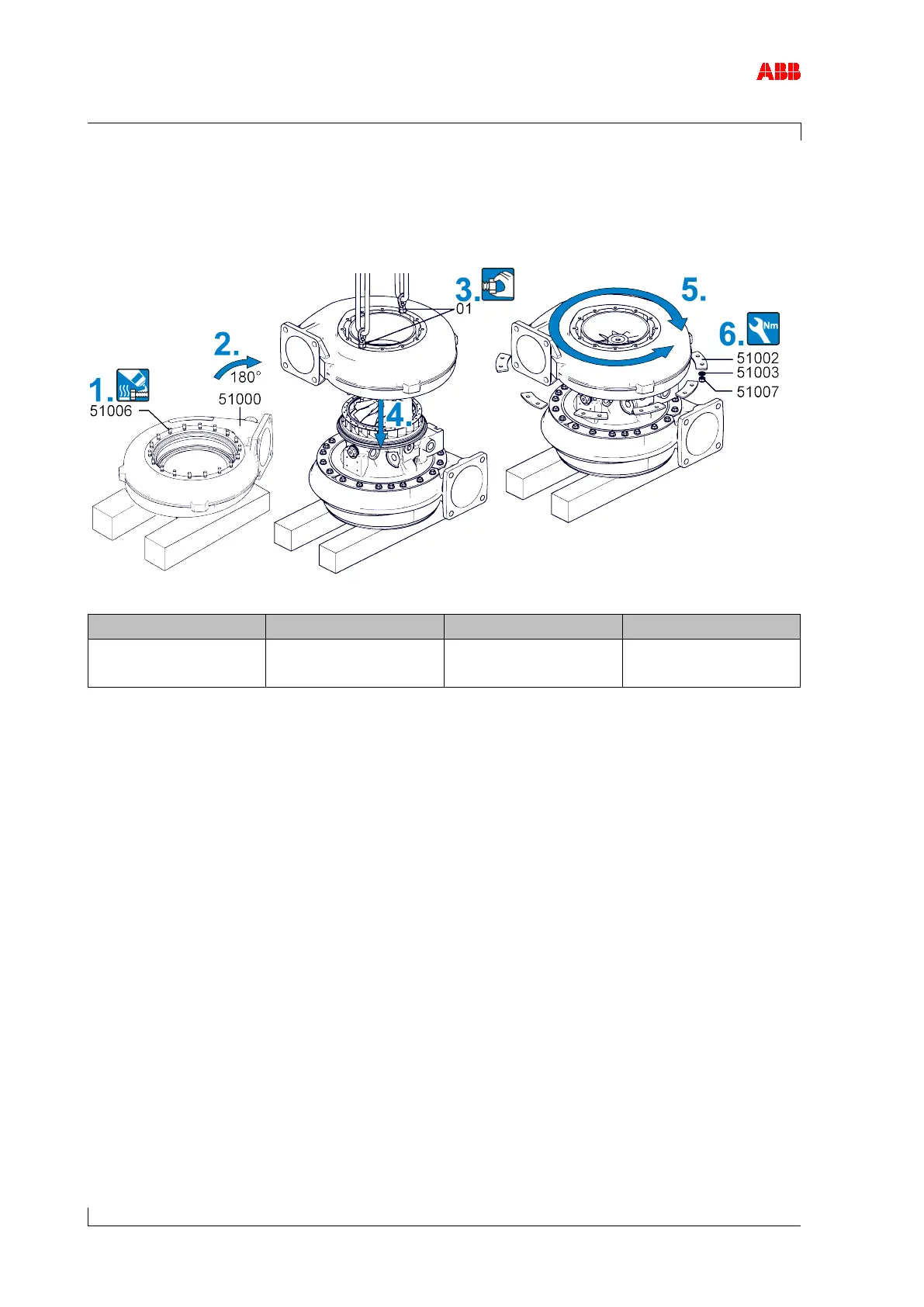

Figure 34: Fitting the turbine casing
Part number
TPS44
TPS48
TPS52
51007 M8
30 Nm
M8
30 Nm
M10
60 Nm
Table 37: Tightening torque (51007)
1. Coat the threads of the studs (51006) with high-temperature grease.
2. Turn the turbine casing (51000) by 180°.
3. Fit two swivel lifting eyes (01) on the turbine casing.
4. Place the turbine casing onto the cartridge group.
5. Align turbine casing to the marking.
6. Fit and tighten the fastening strips (51002) with Verbus Ripp® discs (51003) and hexagon
nuts (51007).
