9.2 Weights of individual parts
The specified weights of the individual parts or assemblies are rounded-up standard values.

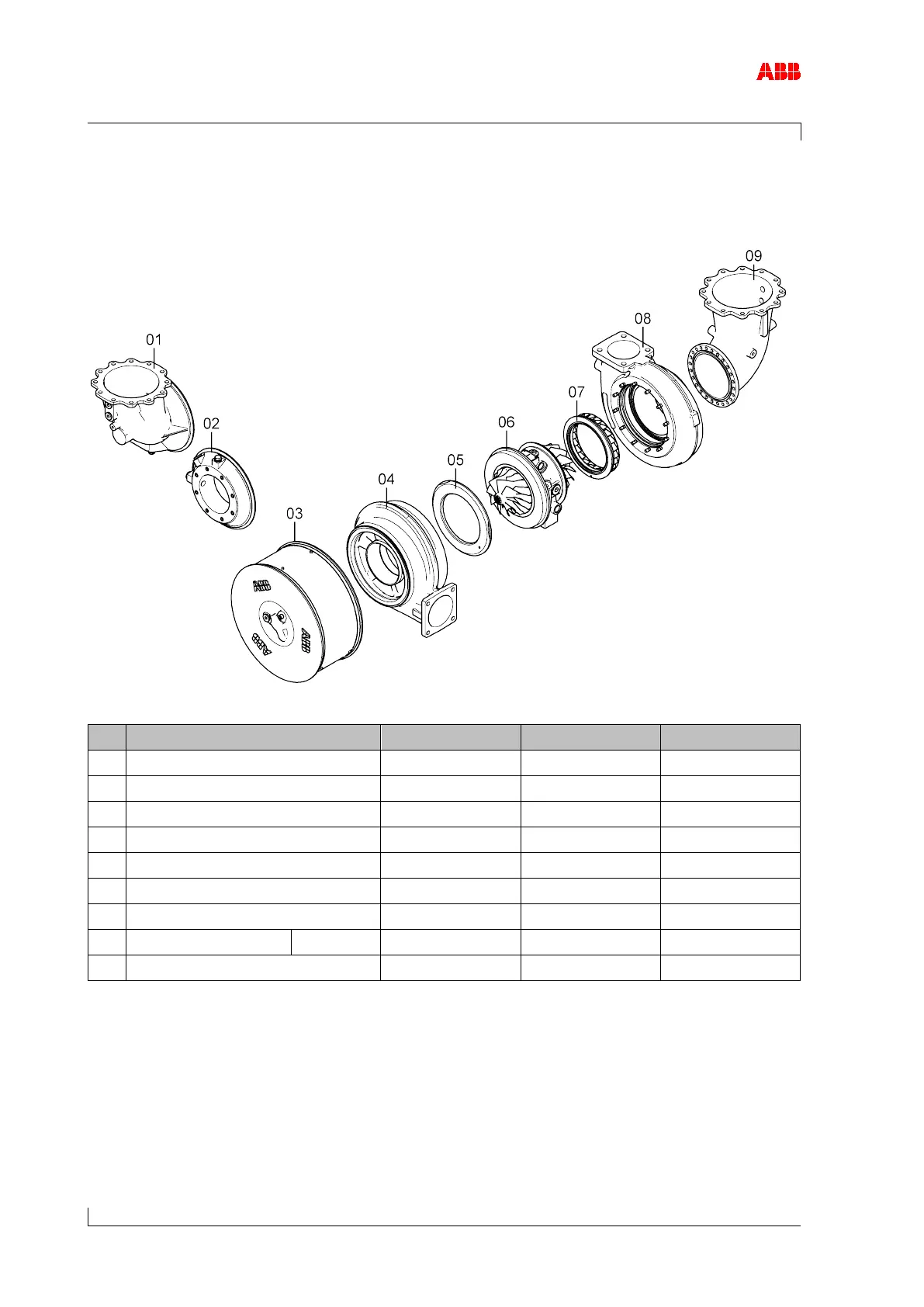

Figure 17: Overview of assemblies
Designation
TPS44
TPS48
TPS52
01 Radial air suction branch 5 6 8
02
Axial air suction branch
3
4
4
03 Filter silencer 15 - - - -
04
Compressor casing
17
30
45
05 Diffuser 2 3 4
06 Cartridge group 24 40 65
07 Nozzle ring 1 2 3
08
Turbine casing
1 inlet
30
45
70
09 Gas outlet casing 16 - - - -
Table 32: Weights of the assemblies [kg]
