Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
Page 14 /
© Copyright 2016 ABB. All rights reserved.
2.3 Installing the turbocharger
2.3.1 Inserting gaskets
Gaskets that are forgotten, damaged or improperly inserted will lead to oil
leaks.
Always use new gaskets and insert them carefully into the slot.
The oil is supplied (02) and drained (03) through the bracket (01).
The necessary sealing is provided by O-rings. The O-rings are not included in the ABB Turbo
Systems scope of delivery.

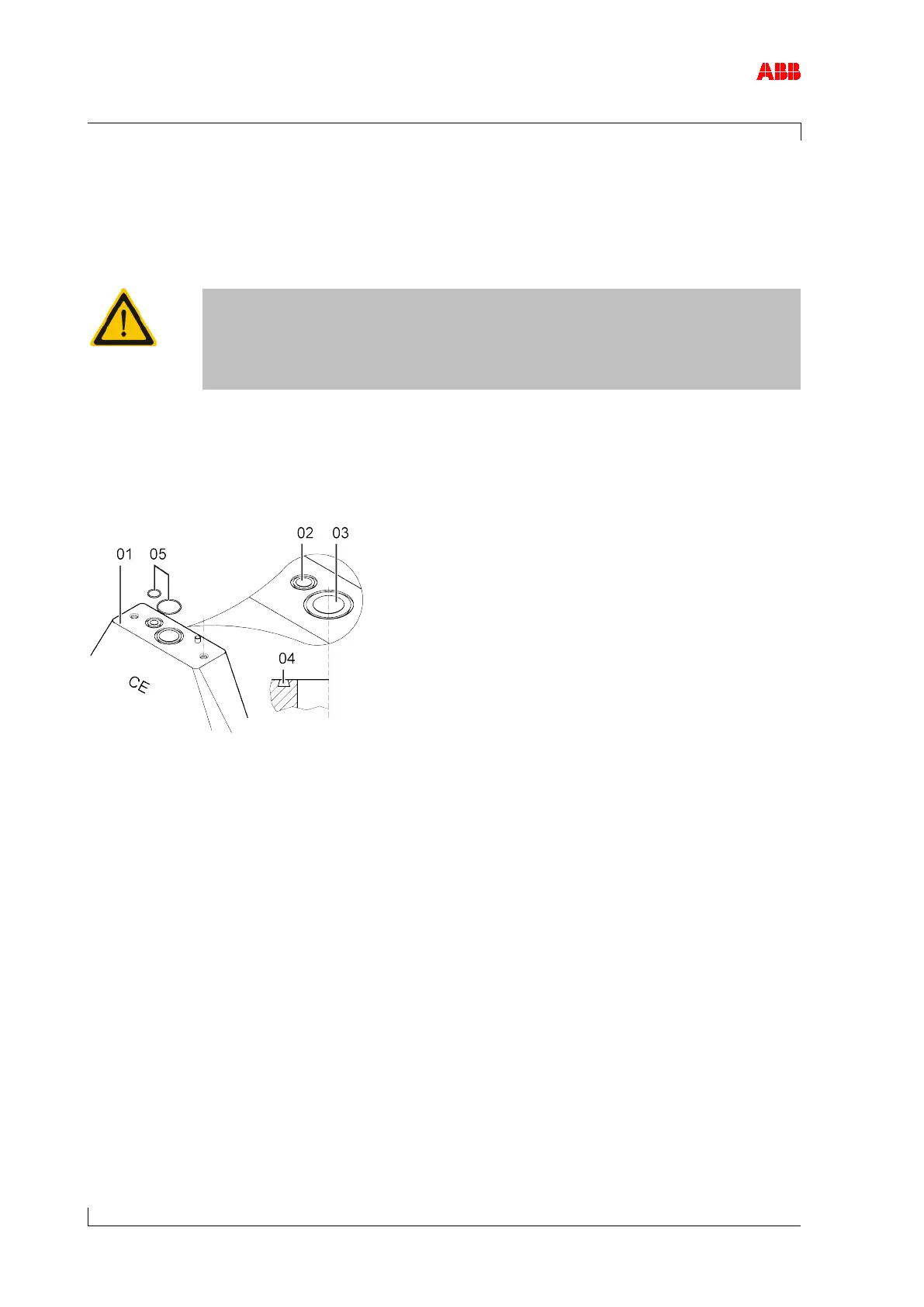

Figure 6: Inserting O-rings into bracket
01 Bracket
02 Oil supply
03 Oil drain
04 Slot for O-ring
05 O-rings
CE Compressor end
