ABB TPS48-H33 - Installing the Gas Outlet Casing; Table 39 Tightening Torque (51101)

Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9
Dismantling and fitting
Page 81 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016
9.17 Installing the gas outlet casing

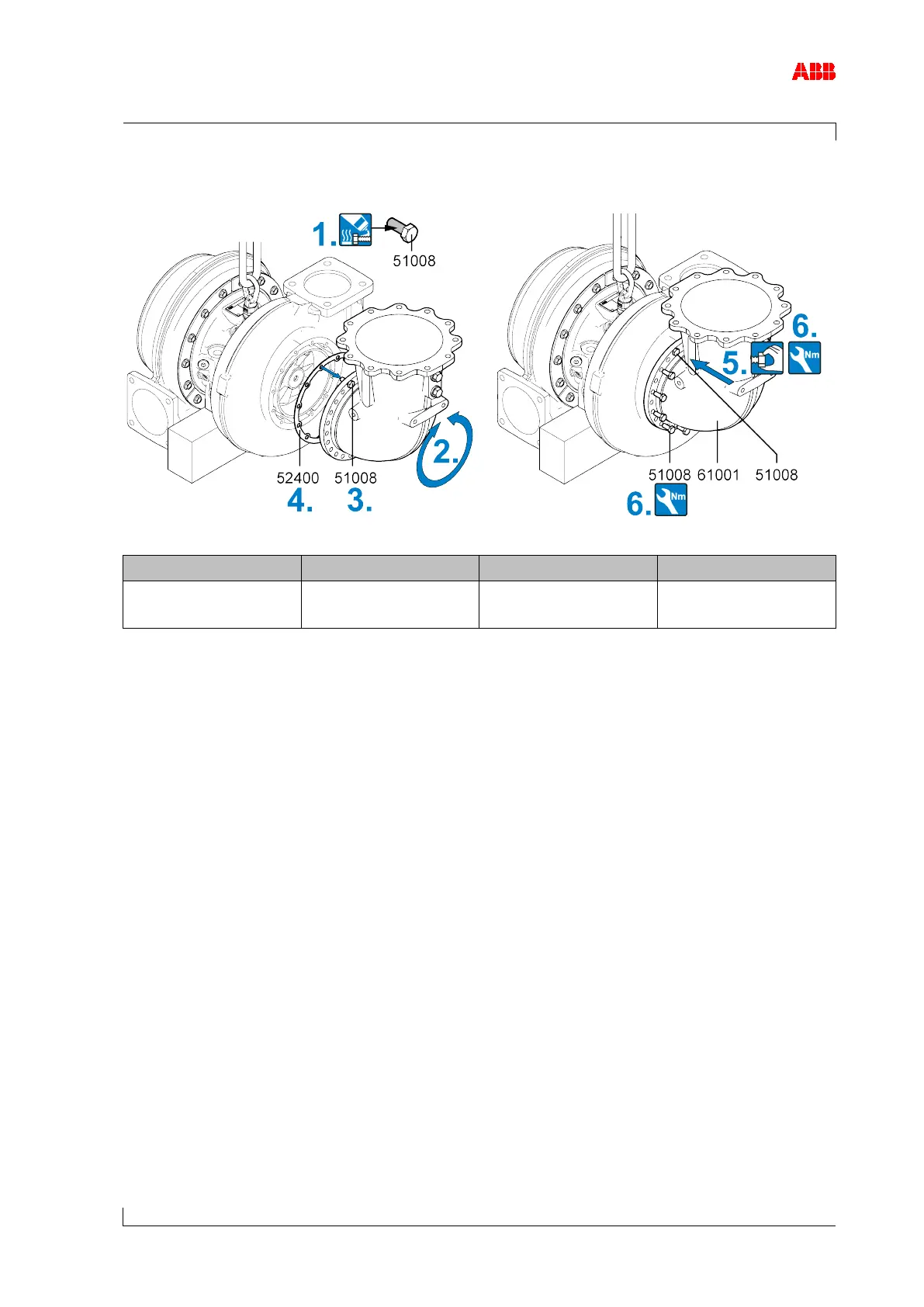

Figure 37: Fitting the gas outlet casing
Part number
TPS44
TPS48
TPS52
51008 M8
25 Nm
M8
25 Nm
M10
50 Nm
Table 39: Tightening torque (51101)
1. Coat the threads of the hexagon-head screws or studs (51008) with high-temperature
grease.
2. Align the casing position of the gas outlet casing (61001) to the marking.
3. Fit two hexagon-head screws (51008) in the upper area of the gas outlet casing.
4. Position the gasket (52400) on the threads of the hexagon-head screws (51008).
5. Install the gas outlet casing (61001) on the turbine casing with the two screws.
6. Fit the remaining screws (51008), then tighten all the screws.
