9.18 Installing air inlets

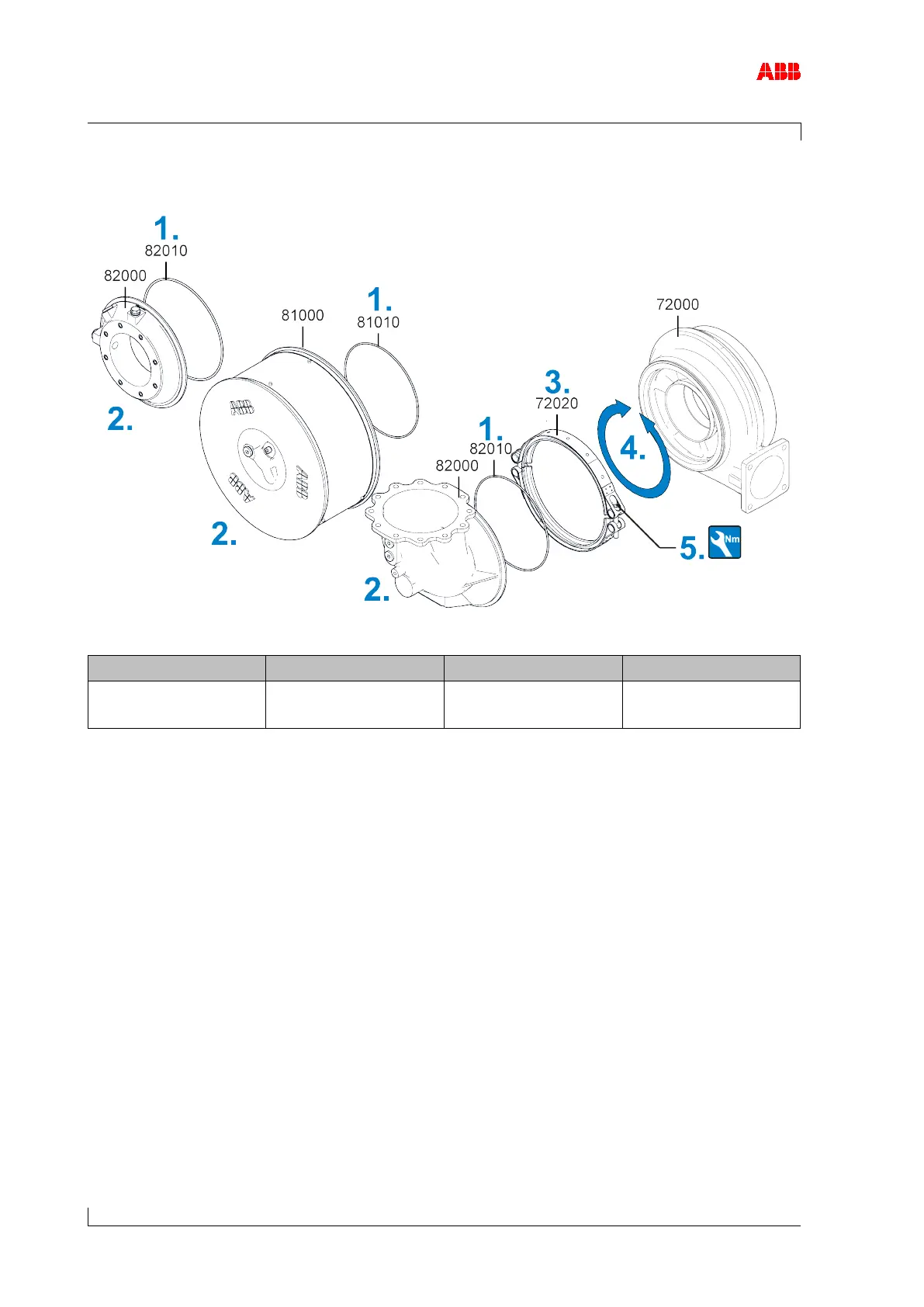

Figure 38: Installing the air inlets
Part number
TPS44
TPS48
TPS52
72020 M10
30 Nm
M10
30 Nm
M10
30 Nm
Table 40: Tightening torque (72020)
1. Fit the new O-ring (81010 / 82010) to the filter silencer (81000) or the air suction
branch (82000).
2. Manually position the filter silencer (81000) or the air suction branch (82000) on the com-
pressor casing (72000).
3. Fit the V-clamp (72020).
4. Align the casing position of the filter silencer (81000) or the air suction branch (82000) to
the marking.
5. Tighten the V-clamp (72020).
