9.19 Table of tightening torques

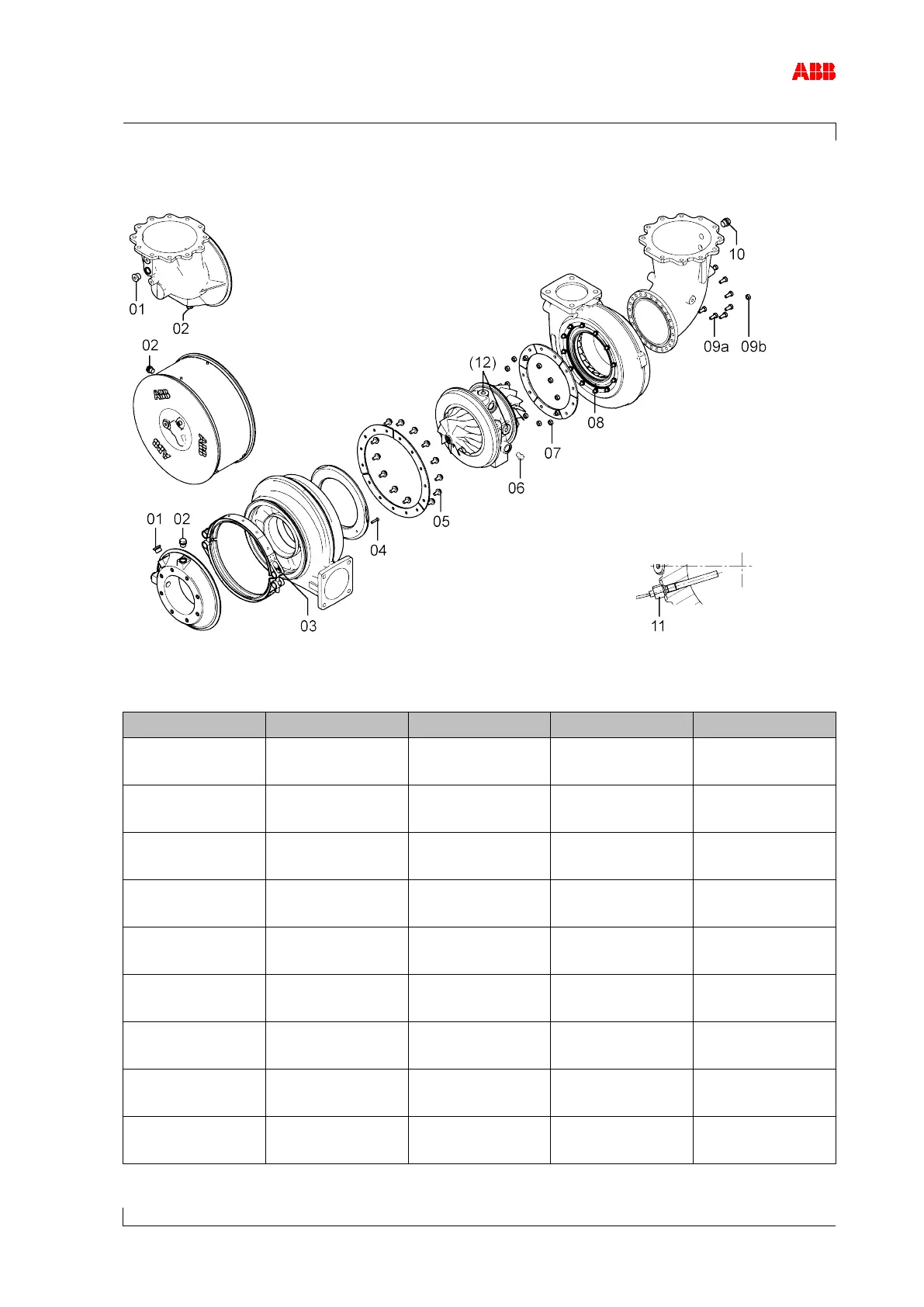

Figure 39: Overview of tightening torques
The following tightening torques must be observed for the designated screw fittings:
Position
Part number
TPS44
TPS48
TPS52
01 82007 M18 x 1.5
60 Nm
M18 x 1.5
60 Nm
M18 x 1.5
60 Nm
02 82005 / 81005 M16 x 1.5
50 Nm
M16 x 1.5
50 Nm
M16 x 1.5
50 Nm
03 72020 M10
30 Nm
M10
30 Nm
M10
30 Nm
04
72041
M5
5 Nm
M5
5 Nm
M6
10 Nm
05 72011 M8
40 Nm
M8
40 Nm
M10
80 Nm
06 42188 M12 x 1.5
35 Nm
M12 x 1.5
35 Nm
M12 x 1.5
35 Nm
07 51007 M8
30 Nm
M8
30 Nm
M10
60 Nm
08 51006 M8
25 Nm
M8
25 Nm
M10
45 Nm
09a /
09b
51008 /
51009
M8
25 Nm
M8
25 Nm
M10
50 Nm
