Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
10
Taking out of operation at short notice
Page 88 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016
The cover plate is not included in the ABB Turbo Systems scope of delivery and must be
manufactured by the operating company according to the following drawing.
Material: General structural steel, in compliance with DIN EN 10025-2.

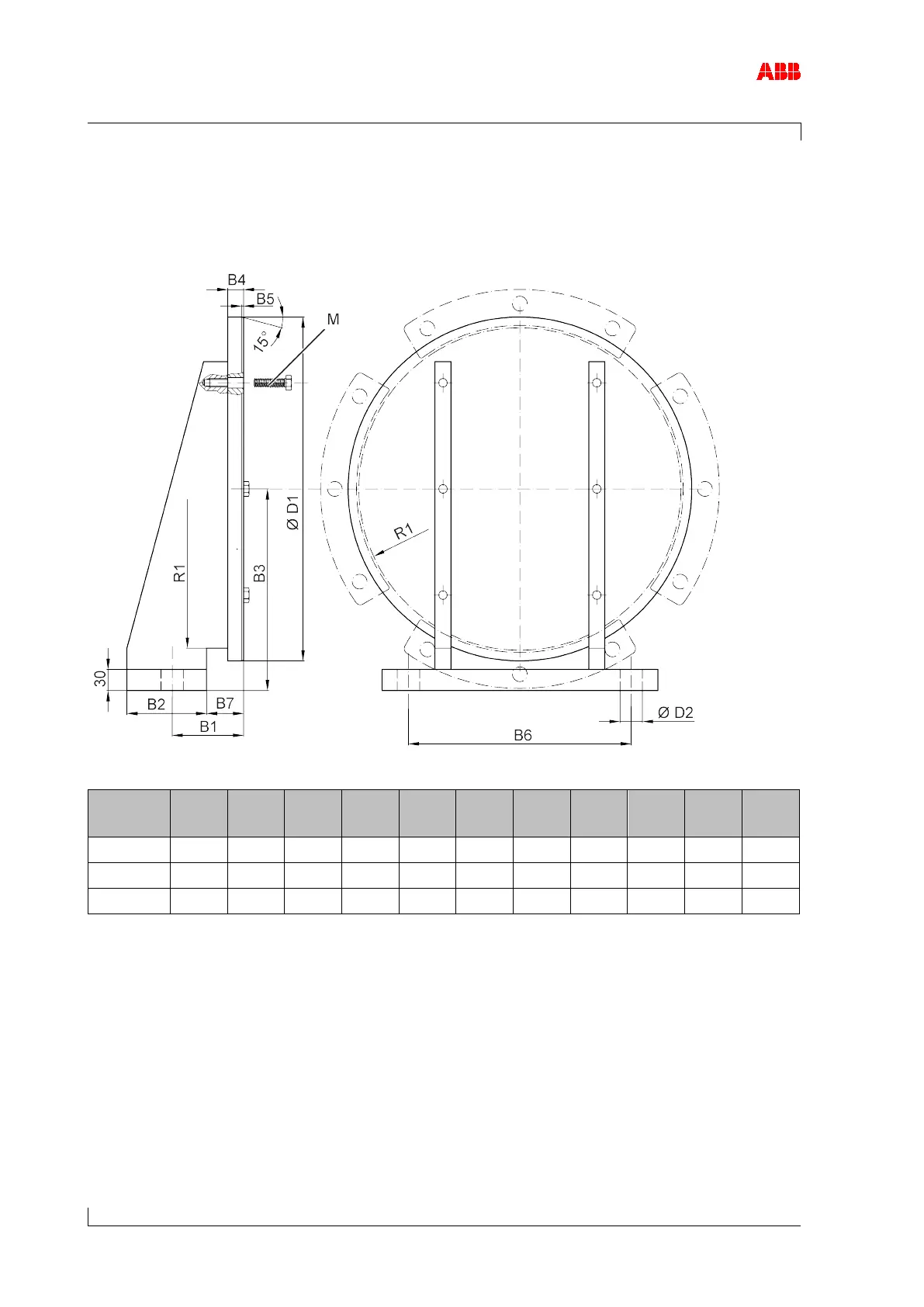

Figure 41: Cover plate drawing
Product
B1
± 0.5
B2
B3
B4
± 0.2
B5
B6
B7
ØD1
± 0.2
ØD2
R1
M
TPS44 62.6 54 110 14 1 144 35 191.5 17 ≤ 90 M8
TPS48 65.7 60 130 14 1.4 150 35.7 227.7 17 ≤ 105 M8
TPS52 79.6 80 155 14 1.6 180 39.6 271.7 21 ≤ 125 M8
Table 43: Cover plate dimensions [mm]
