ABB TPS48-H33 - Removing Nozzle Ring

Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9
Dismantling and fitting
Page 71 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016

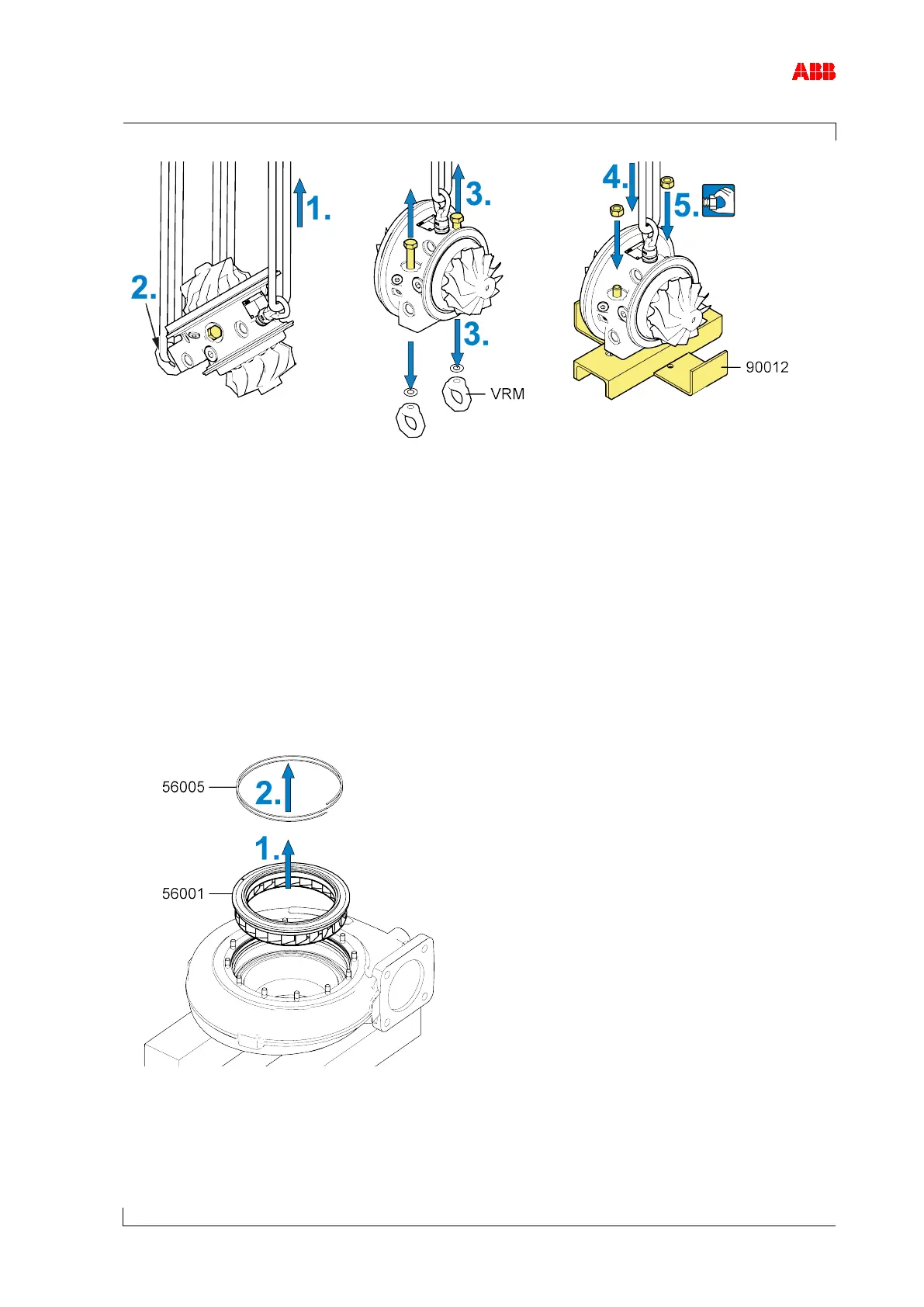

Figure 26: Rotating the cartridge group and fitting the service support
1. Lift the cartridge group and rotate in the horizontal position.
2. Remove the lifting gear from the ring nuts.
3. Remove the ring nuts (VRM) and screws from the service support.
4. Place the cartridge group onto the fitted service support (90012).
5. Fit and hand-tighten nuts.
 Measure: Axial clearance A and radial clearance B [➙ 72].
9.8 Removing nozzle ring
Figure 27: Removing the nozzle ring
1. Remove the nozzle ring (56001) vertically.
2. Remove the lamellar sealing ring (56005).
