Removing the cartridge group
Loosening the turbine casing with the press-off tool
If the turbine casing cannot be loosened, it can be pressed off against the
bearing casing with the press-off tool (90042). See section Pressing off the
casing [➙ 67].

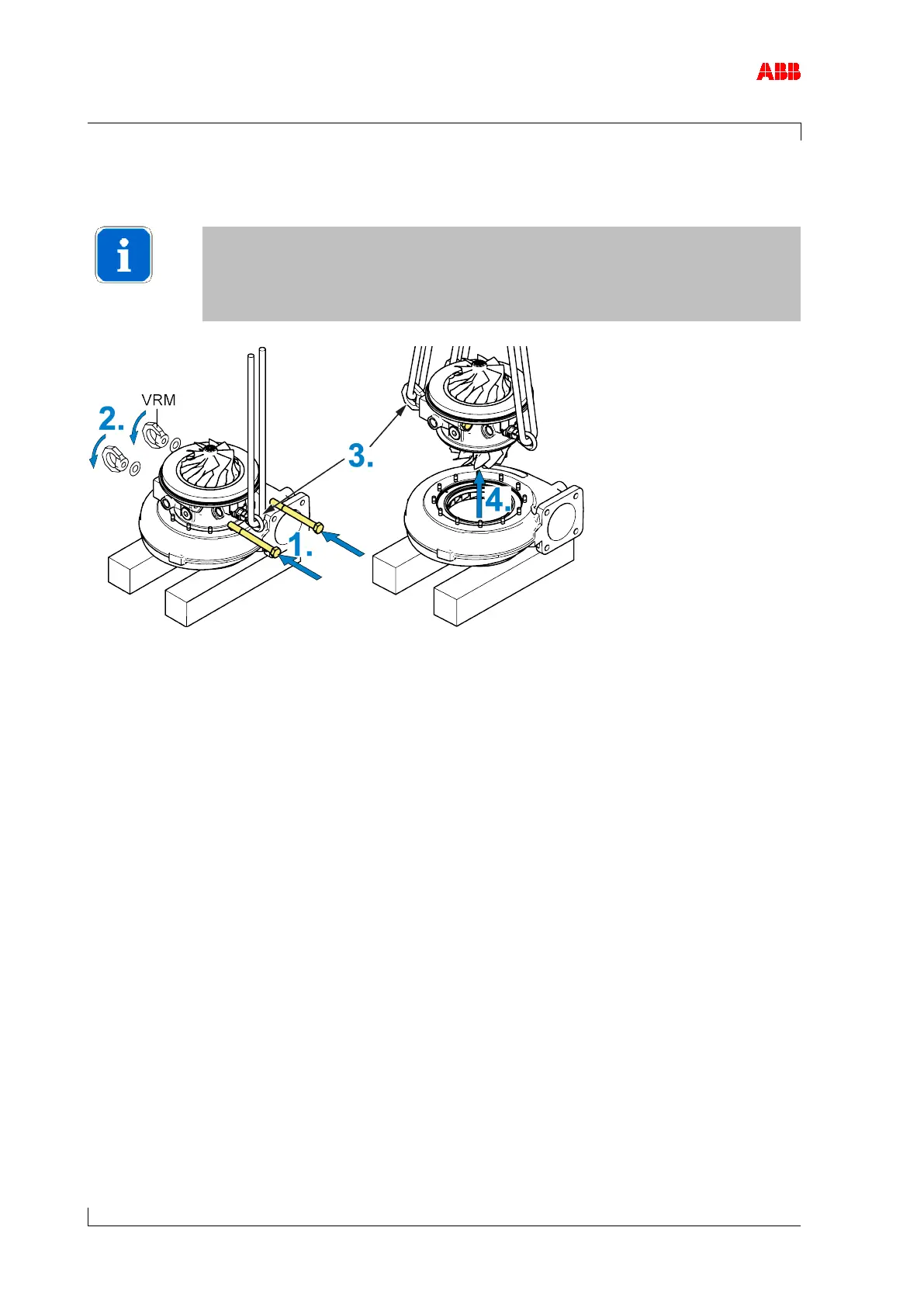

Figure 25: Removing cartridge group 2
1. Insert screws from service support into cartridge group.
2. Secure ring nuts (VRM) onto the screws with washers.
3. Secure the lifting gear to the ring nuts and swivel lifting eye as shown.
4. Remove the cartridge group vertically from the turbine casing.
