9.4 Removing air inlets
NOTICE
Marking casing position for assembly
ABB Turbo Systems recommends marking the casing positions prior to dis-
assembly.

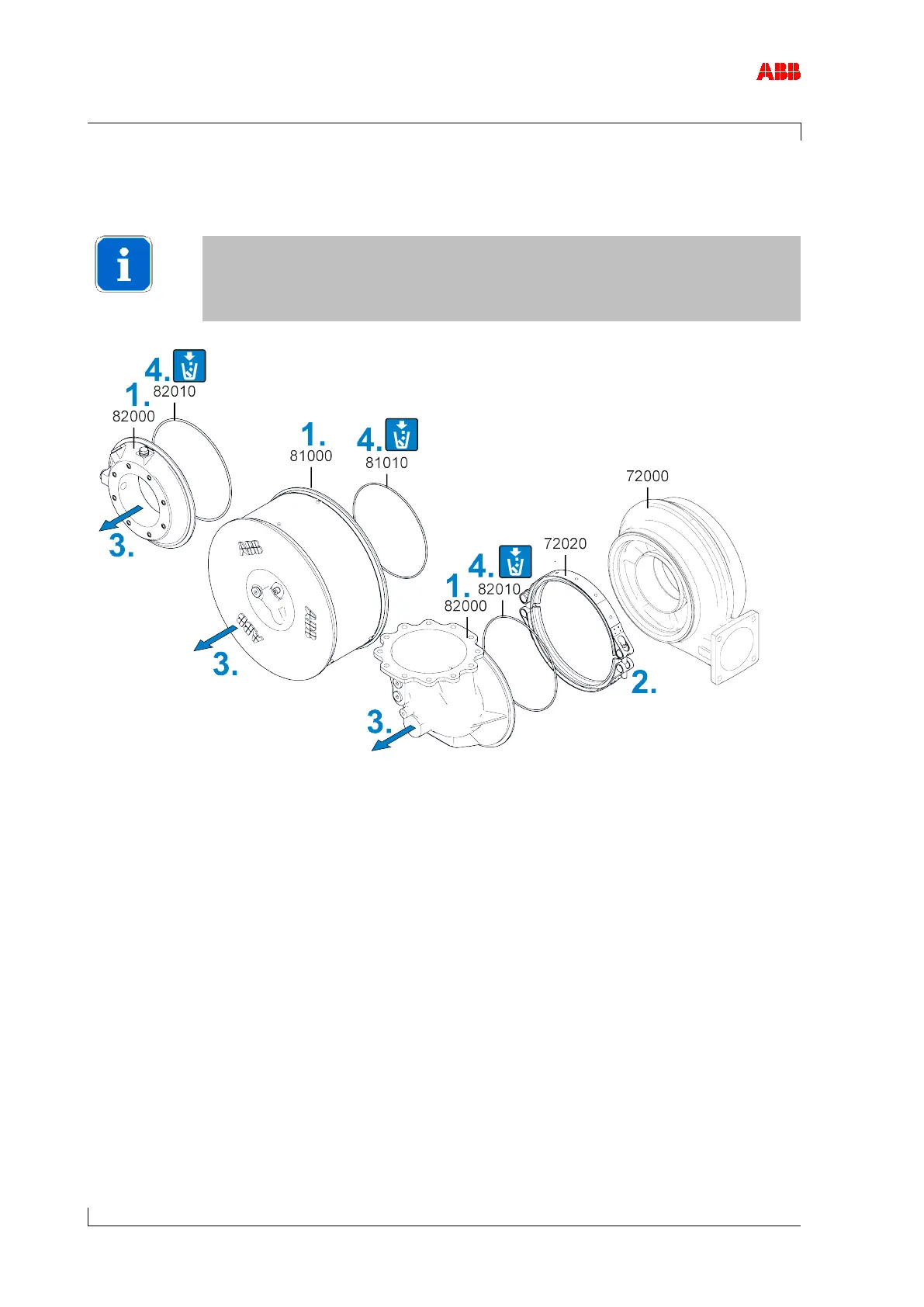

Figure 19: Removing the air inlets
1. Manually secure the filter silencer (81000) or air suction branch (82000).
2. Loosen and remove V-clamp (72020).
3. Remove the filter silencer (81000) or air suction branch (82000).
4. Remove and dispose of O-ring (81010 / 82010) (refer to Disposing of turbocharger com-
ponents [➙ 91]).
