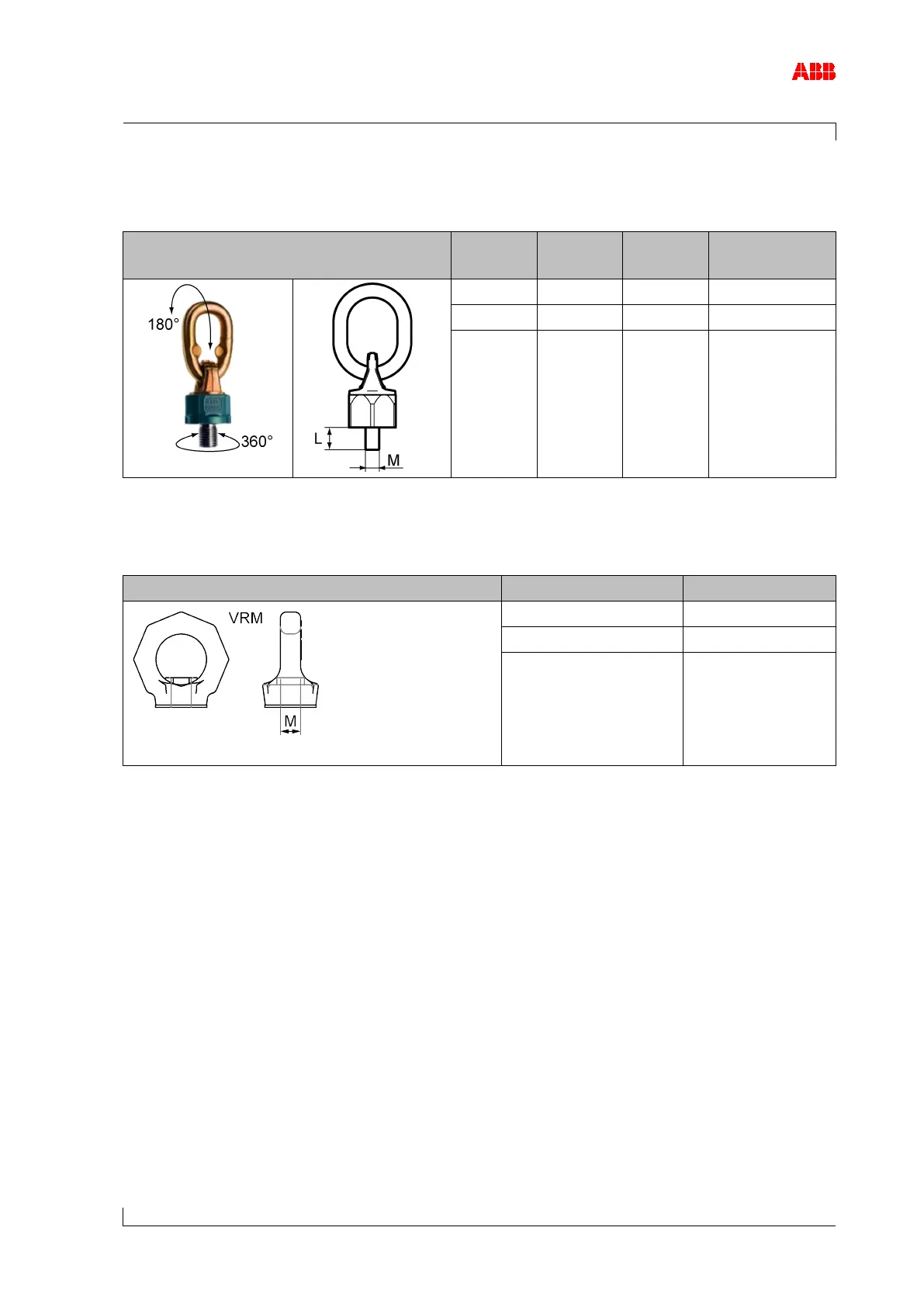

One swivel lifting eye (S) is required to safely lift this turbocharger. This is not included in the
ABB Turbo Systems scope of delivery.
Swivel lifting eye (S) to be used
Product
Thread
Length
L [mm]
Minimum load
limit [kg]
TPS44 M8 13 125
TPS48 M8 13 190
TPS52 M10 18 260
Table 30: Swivel lifting eye (S) to be used
Two ring nuts are required for safer lifting of the cartridge group, which are not included in the
ABB Turbo Systems scope of delivery.
Ring nuts to be used (VRM)
Product
Thread
Starpoint ring nut VRM
TPS44 M16
TPS48 M16
TPS52 M20
Table 31: Ring nuts to be used
