ABB TPS48-H33 - Installing Nozzle Ring

Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9
Dismantling and fitting
Page 77 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016
9.13 Installing nozzle ring

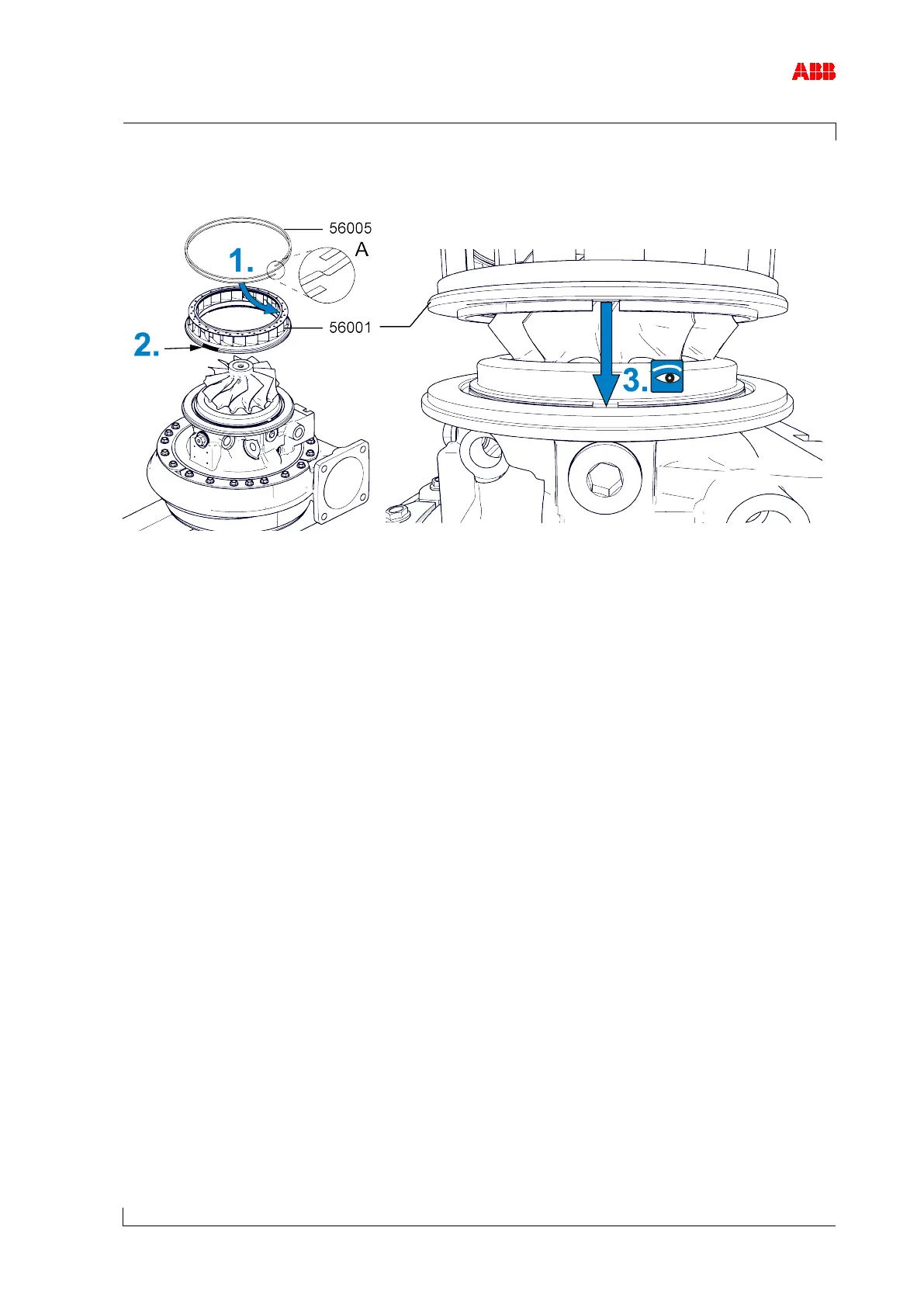

Figure 33: Installing the nozzle ring
1. Fit lamellar sealing ring (56005) in the slot of the nozzle ring. When doing this, pay atten-
tion to correct winding of the lamellar sealing ring (see detail A).
2. Secure the lamellar sealing ring (56005) with adhesive tape.
3. Installing the nozzle ring. Ensure correct position according to illustration.
