ABB TPS48-H33 - Turbocharger Layout, Function, and Installation

Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
1
Introduction
Page 6 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016
1.4 Layout and function of the turbocharger

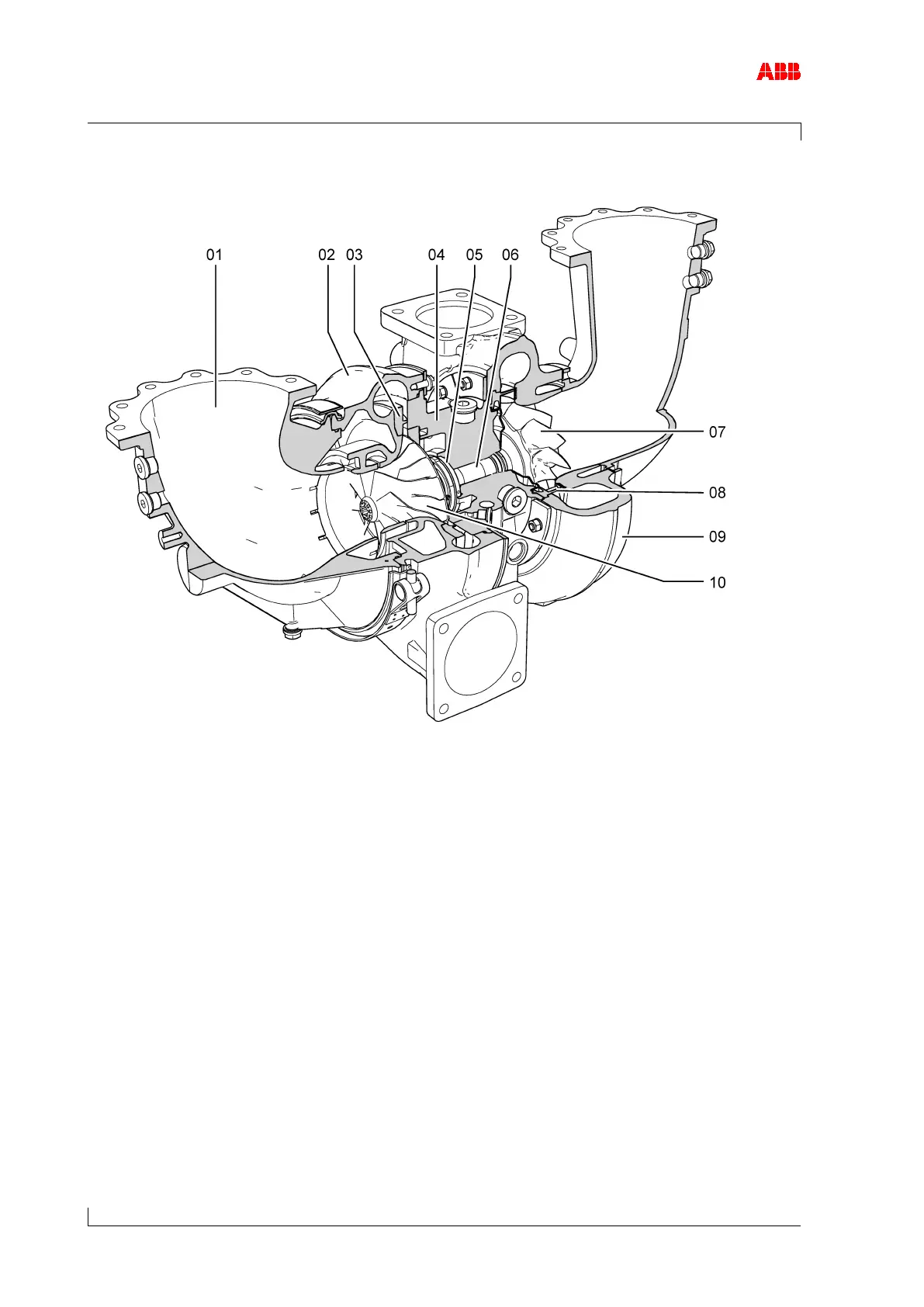

Figure 1: Layout and function of the turbocharger
01 Air suction branch / filter silencer 06 Plain bearing bush
02 Compressor casing 07 Turbine
03 Diffuser 08 Nozzle ring
04 Bearing casing 09 Turbine casing
05 Axial thrust bearing 10 Compressor wheel
