ABB TPS48-H33 - Table 36 Tightening Torque (72011)

Operation Manual / 4 Product description / TPS44-H.. - TPS52-H..
9
Dismantling and fitting
Page 76 /
99
© Copyright 2016 ABB. All rights reserved.
HZTL4037_EN
Revision A
August 2016
Fitting the cartridge group

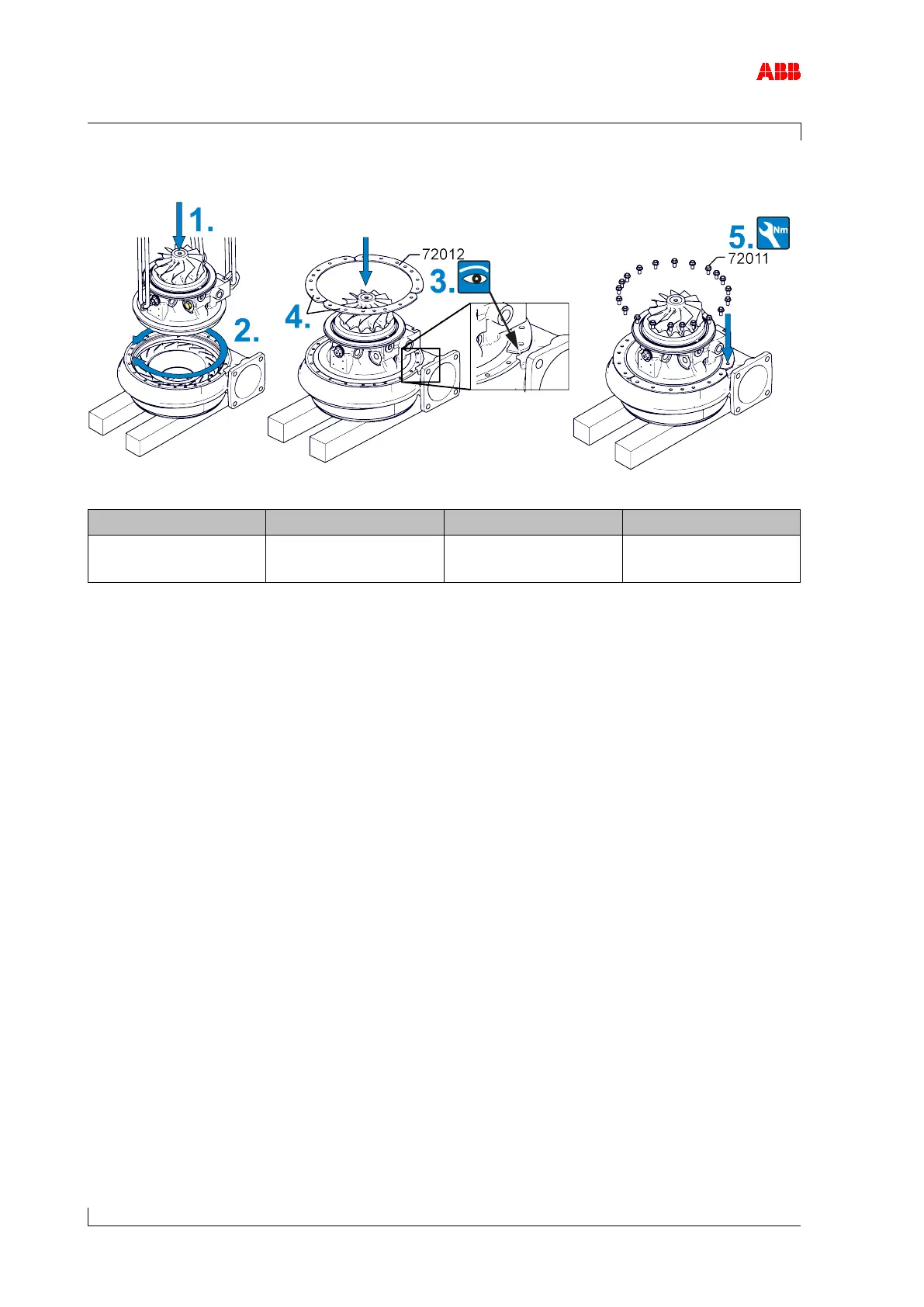

Figure 32: Fitting the cartridge group
Part number
TPS44
TPS48
TPS52
72011 M8
40 Nm
M8
40 Nm
M10
80 Nm
Table 36: Tightening torque (72011)
1. Lower cartridge group carefully into the compressor casing.
2. Align cartridge group to the marking.
3. Place first fastening strip (72012) according to illustration.
4. Place remaining fastening strips (72012).
5. Fit and tighten hexalobular-head screws (72011).
