9.3 Removing the gas outlet casing
NOTICE
Marking casing position for assembly
ABB Turbo Systems recommends marking the casing positions prior to dis-
assembly.

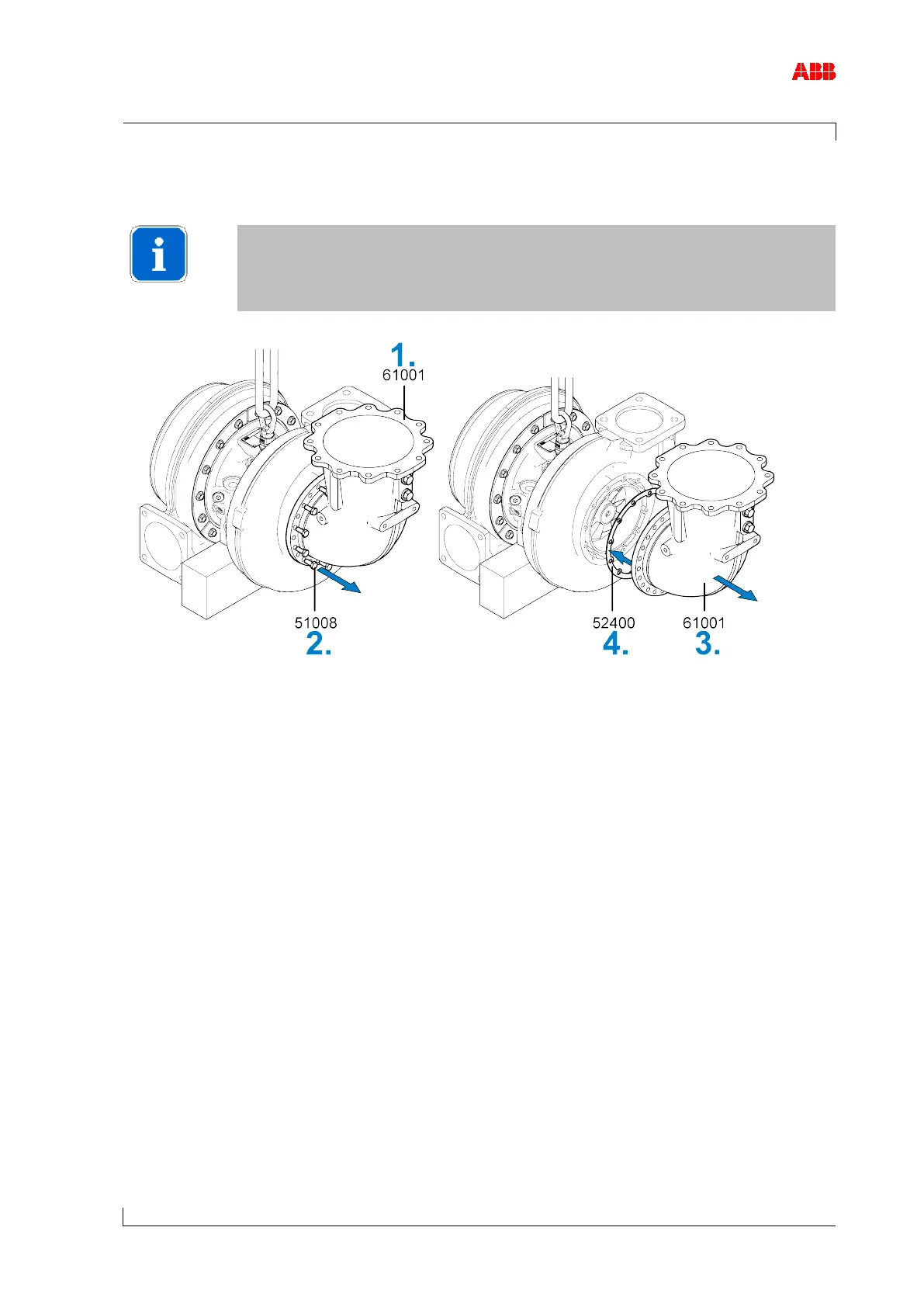

Figure 18: Removing the gas outlet casing
1. Manually secure the gas outlet casing (61001).
2. Loosen and remove screws (51008).
3. Remove the gas outlet casing (61001).
4. Remove the gasket (52400).
