9.5 Removing the compressor casing

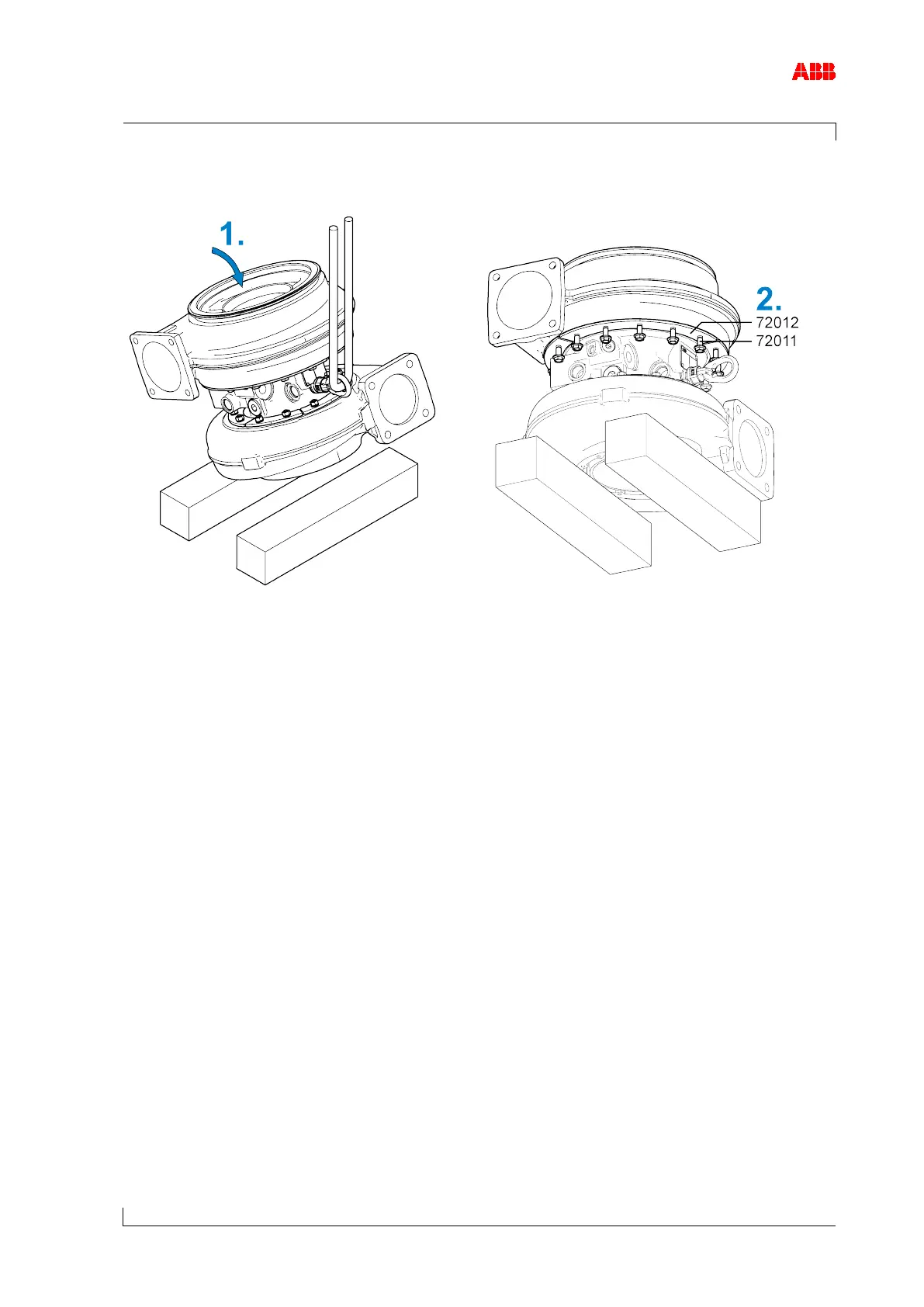

Figure 20: Removing the compressor casing (1/2)
1. Place the turbocharger in a vertical position on a soft underlay.
2. Loosen the hexagon-head screws (72011) and remove them with fastening strips (72012).
