Removing the turbine-end fastening strips
Marking casing position for assembly
ABB Turbo Systems recommends marking the casing positions prior to dis-
assembly.

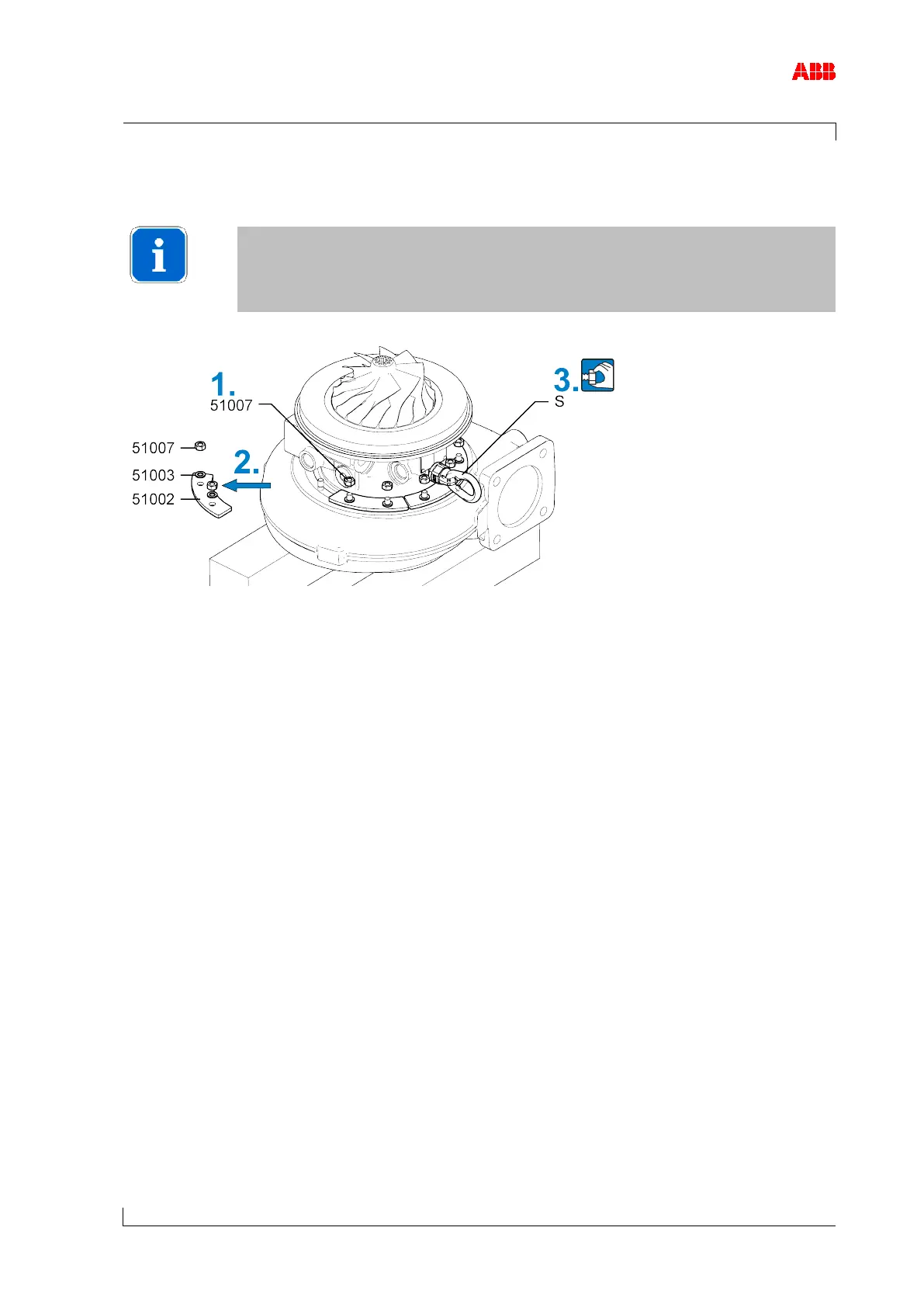

Figure 24: Removing the cartridge group (1)
1. Loosen the hexagon nuts (51007).
2. Remove hexagon nuts (51007), Verbus Ripp®discs (51003) and fastening strips (51002).
3. Screw in the swivel lifting eye (S) up to the stop.
