4.3.2 Layout and overview

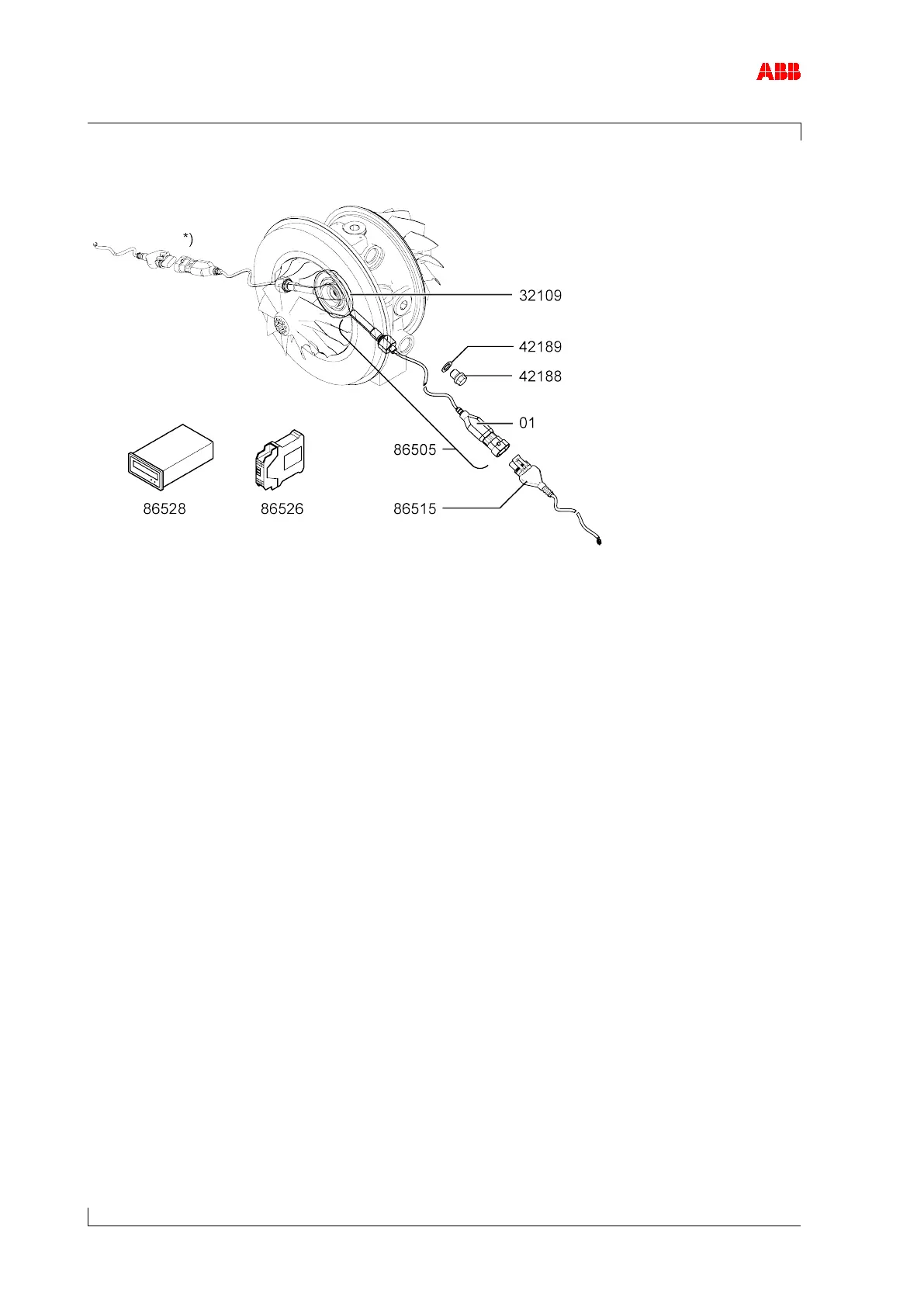

Figure 10: Layout and overview of the speed measurement system
86505 Speed sensor 42188 Screw plug
86515 Cable connector 42189 Gasket
86526 F/I converter 01 Plug with integrated voltage limiter
86528 Tachometer *) Alternative mounting position for speed sensor
32109 Sealing disc
