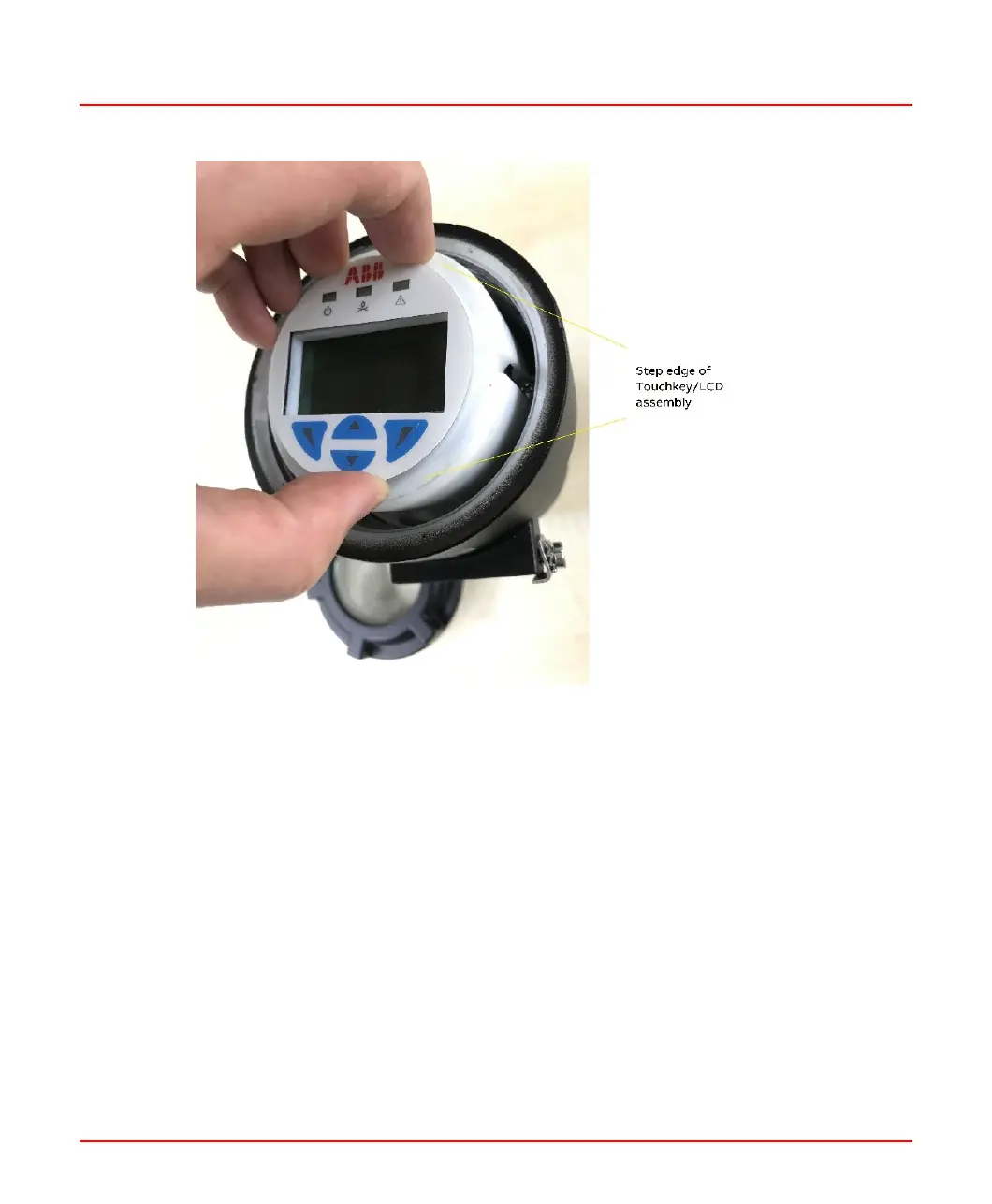

Figure 3.3: Snap the Step Edge of Touchkey/LCD Assembly

Pull and remove the Touchkey/LCD assembly outside from the enclosre as shown in

the below figure.

8VZZ005286 B 47

3 Installation

3.3 Product Installation
