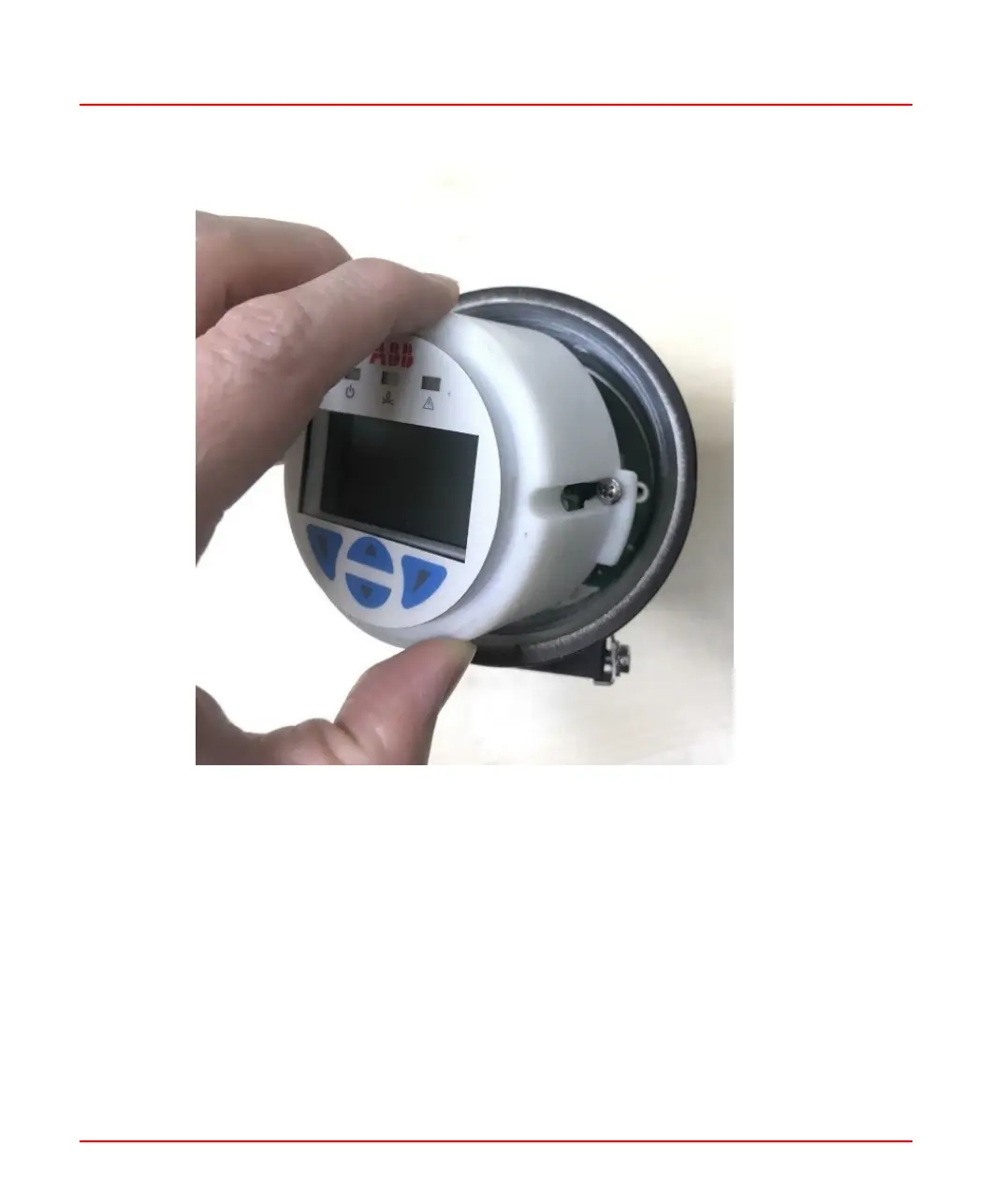

Figure 3.4: Pull and Remove the Touchkey/LCD Assembly
Then, place the Touchkey/LCD assembly at hand, and notice that the two phillips head
screws with waisted shank will stay on Touchkey/LCD assembly and not be dropped
out.
After that, the user can find the ATB board appearance and wiring connectors, and
continue to do wiring connection.
8VZZ005286 B 48
3 Installation
3.3 Product Installation
To Next Page
