Accsense VersaLog Data Loggers User’s Manual Page 23

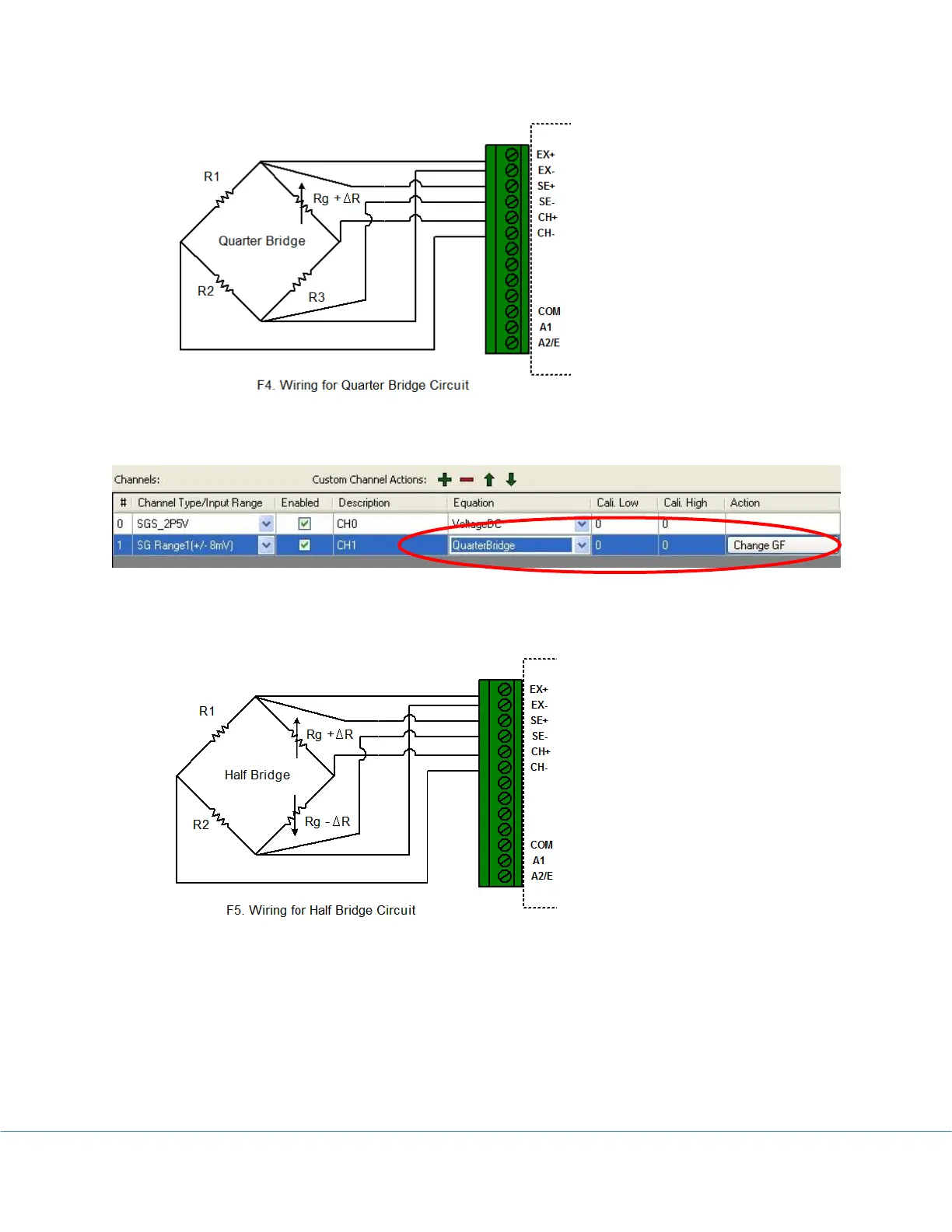

This circuit is for equation “QuarterBridge”. When configure the logger, choose
“QuarterBridge” equation and click “Change GF” to change the Gauge Factor.
Wiring for Half Bridge Circuit:
This circuit is for equation “HalfBridge”. When configure the logger, choose “HalfBridge”
equation and click “Change GF” to change the Gauge Factor.
Wiring for Full Bridge Circuit:
