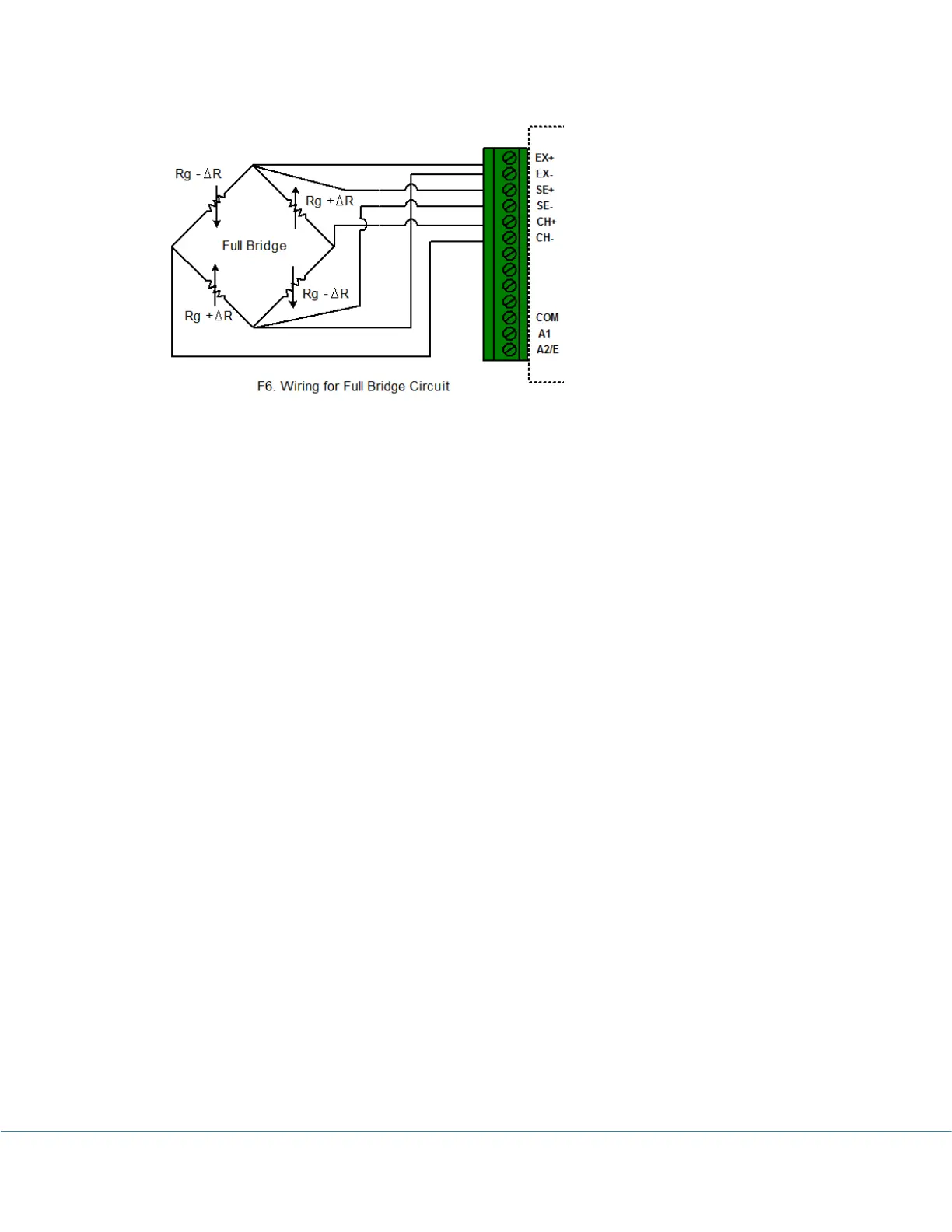

This circuit is for equation “FullBridge”. When configure the logger, choose “FullBridge”
equation and click “Change GF” to change the Gauge Factor.
Other Bridge Circuit:
If your bridge circuit is not included in the above configurations, you may need to write
your own equation. SiteView includes a custom equation “BridgeSample” for your
reference. The source code looks like:
// Sample Equation for iLog Strain Gauge/Bridge
public double SampleBridge(double Input)
{
//Change it according to your curcuit
double GF = 1;//Gauge Factor
//The voltage of the bridge output
double Vo = Input;
//The voltage of the Excitation sense channel
double Vex = Channels[0].Measurement;
/* this block is for half bridge circuit
double strain = -2 * Vo / (Vex * GF);
return strain;
*/
/* this block is for full bridge circuit
double strain = -Vo / (Vex * GF);
return strain;
*/
/* this block is for quarter bridge circuit */
double strain = -4 * Vo / ((2 * Vo + Vex) * GF);
return strain;
}
