Accsense VersaLog Data Loggers User’s Manual Page 40

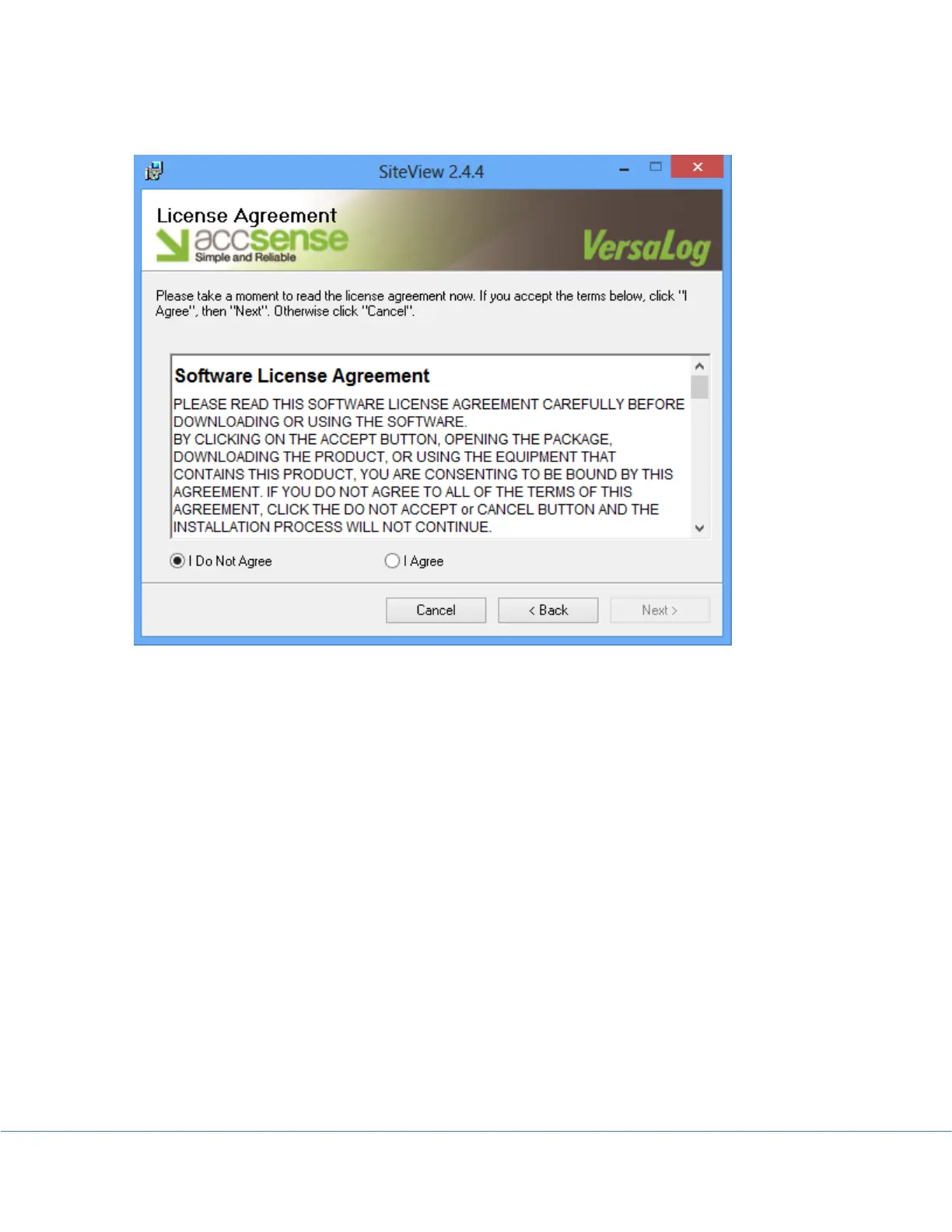

Click “Next >” button to proceed to the next page.

Please read the License Agreement carefully. If you accept the terms click “I Agree”, then click

“Next >” button. Otherwise click “Cancel” to cancel the installation.
