Accsense VersaLog Data Loggers User’s Manual Page 41

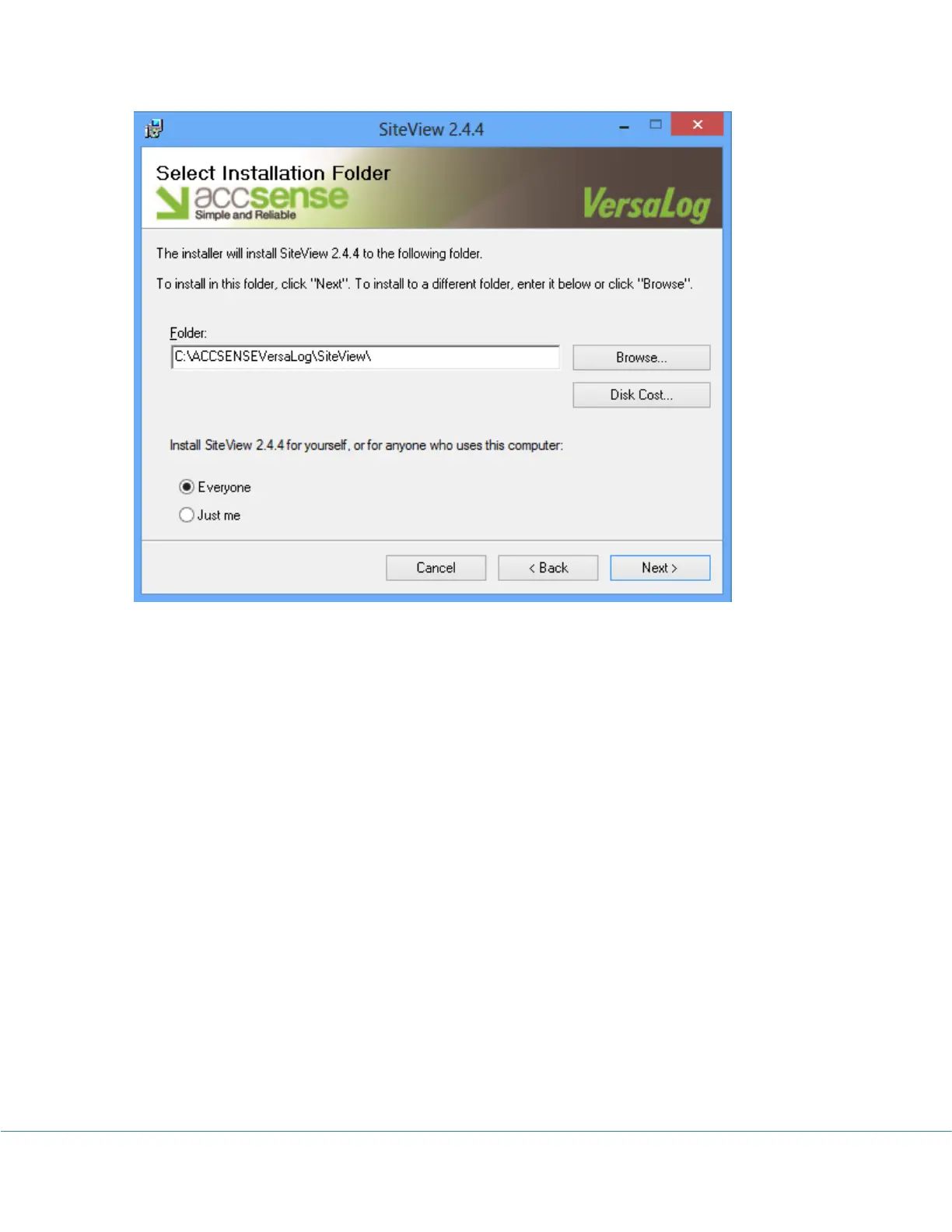

In this dialog select a destination folder where VersaLog SiteView will be installed. We

recommend you keep the default folder.

Once you are ready, click “Next >” button to proceed to the next page.
