www.accuenergy.com
V: 1.0 Revised: Jan. 2018
24
AcuDC 240 Series
DC Energy & Power meters
CHAPTER 3: INSTALLATION - CONFIGURATION PARAMETER
SET-UP VIA DISPLAY
3.1 Display Panel and Keys
The front of the AcuDC 240 series meter consists of an LCD screen and two control keys.
All the display segments are illustrated in Fig 3-1. Users should note that all the segments
will not display in a single page under normal conditions.
There are two keys on the front panel, marked as ‘F’ key and ‘V/A’ key, which are used to
display different parameter data and parameter settings.
1
SET
kV
kA
kW
MW
kWh
2
3
4
1
2
3

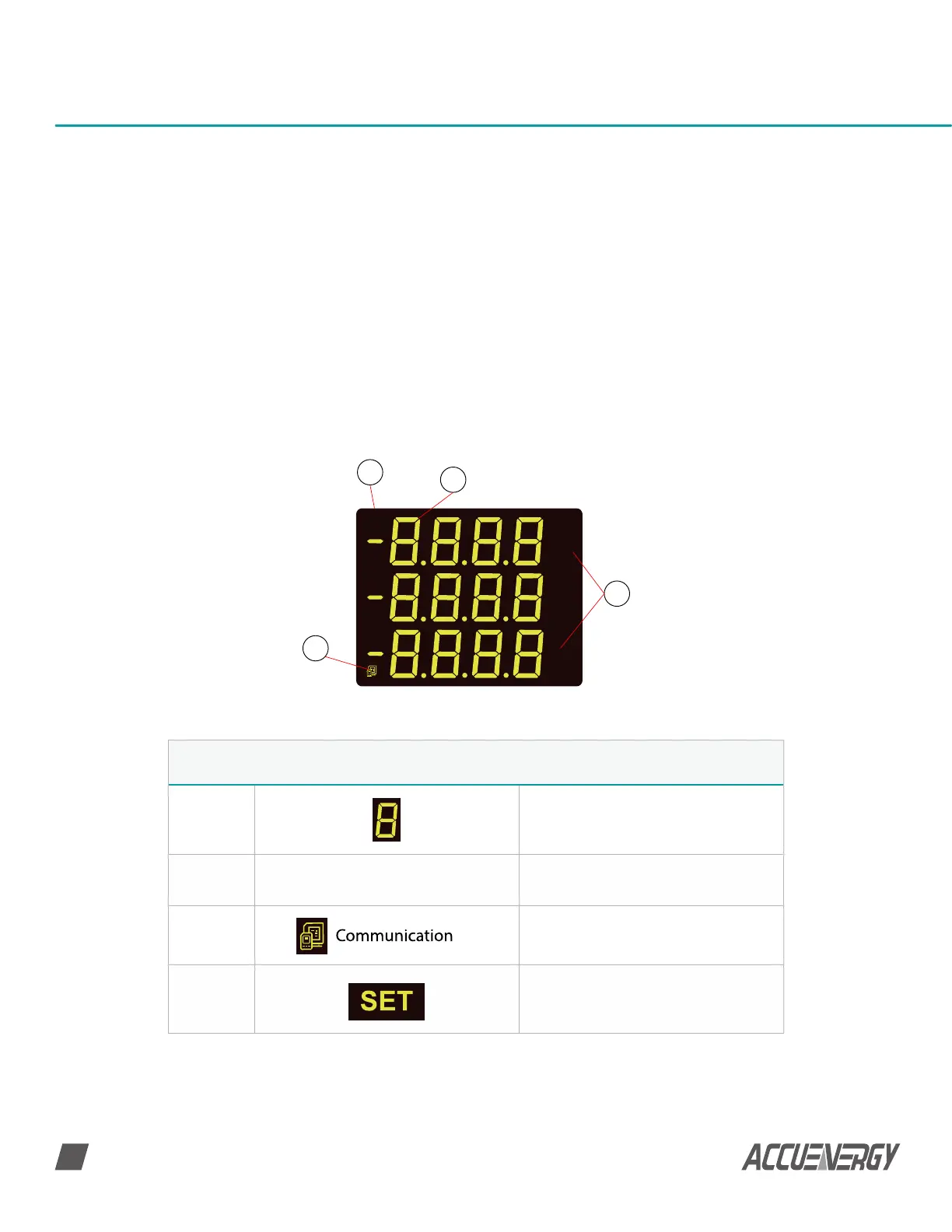

Fig 3-1 All Display Segments
Number Display Description
1
Display data of voltage, current, power and
energy
2
kV, kA, kW, MW, Hz, kvar, Mvar, kVA, MVA,
kWh, kvarh, kVAh
Data Unit
3
No Icon: no communication
One icon: query sent
Two icons: query sent and response re-
ceived
4
Setting mode: Indicates the meter is in
Setting Mode
