• A password screen will display. Leave the password as default ‘0000’ and press ‘V/A’ to
enter the setting mode; the communication address ‘AddR’ screen will display next.

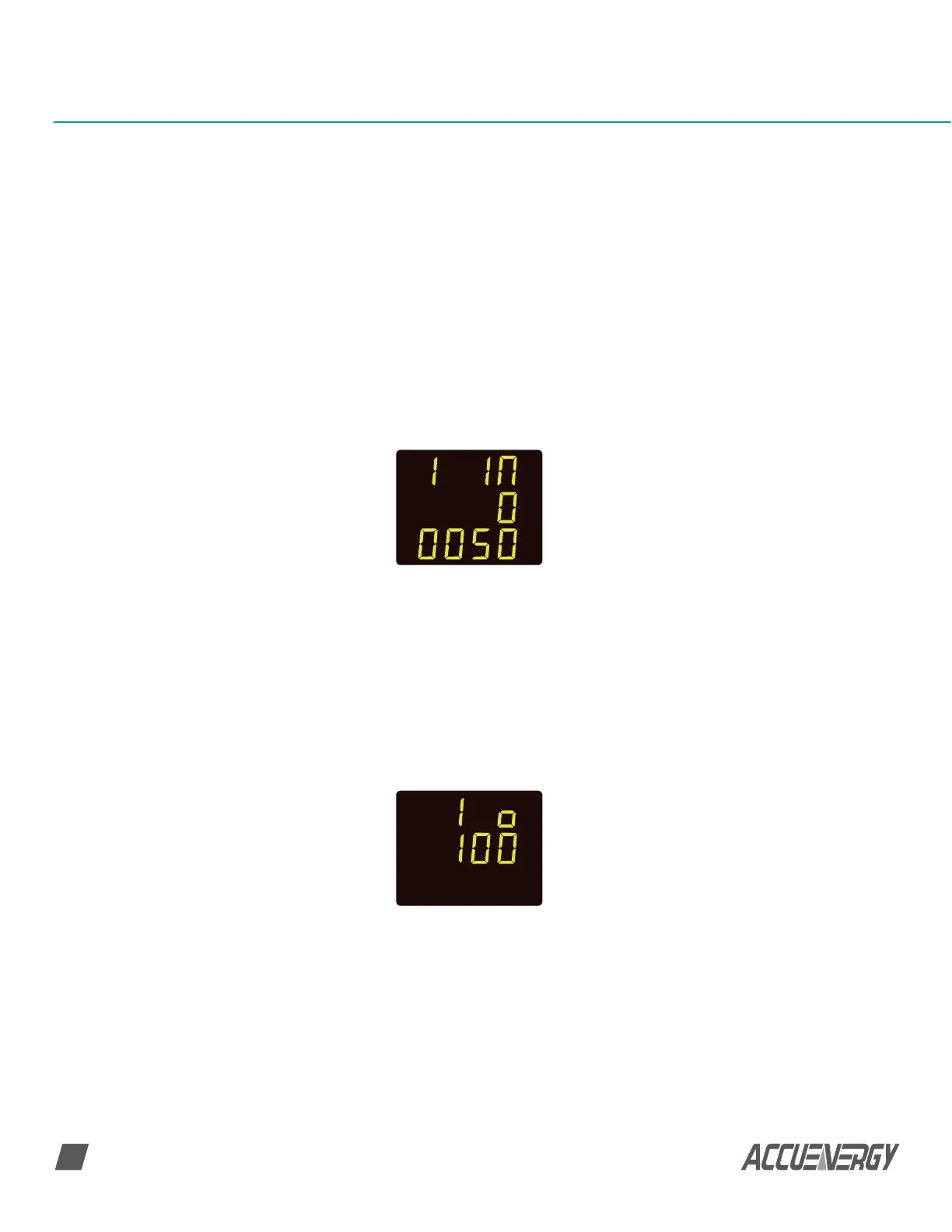

• Press ‘V/A’ until you get to the ‘I In’ screen. Enter the rated current input of the shunt
in this screen.
• Press ‘F’ to change this setting. A digit will begin to flash and you will enter the edit
mode.
• Press ‘V/A’ to go to the next screen. This will be the ‘I o’ screen. This setting
corresponds to the output range of the shunt.
• Press ‘F’ to increase the value of the flashing digit
• Press ‘V/A’ to switch the flashing digit
• Press ‘V/A’ when on the last digit to confirm the change; the cursor will stop
flashing at this point.
SET
• Press ‘F’ to change this setting. The first digit will begin to flash and you will enter
the edit mode.
• Press ‘F’ to increase the value of the flashing digit
• Press ‘V/A’ to switch the flashing digit
• Press ‘V/A’ when on the last digit to confirm the change; the cursor will stop
flashing at this point
SET
Why won’t my meter connect to the AcuView software?
• The physical connection of the device is incorrect, please refer to section 2.3.6;
• The communication parameters, such as Baud Rate, Parity, device type, device
address are not properly selected the same as the meter.
• The “Com Port” in the software is not selected as the same as the computer. Please
refer to section 5.1.2.

AccuEnergy AcuDC 241 Specifications

General

Brand	AccuEnergy
Model	AcuDC 241
Category	Measuring Instruments
Language	English
