Acer H6500 - 2-2 Disassemble Lamp module

Condential
2-2
H6500
3. Pull upward the Lamp cover module
(as blue arrows point).
4. Loosen 2 screws (as red circle) on the
Lamp module.
5. Take off the Lamp module.
2-2 Disassemble Lamp
module

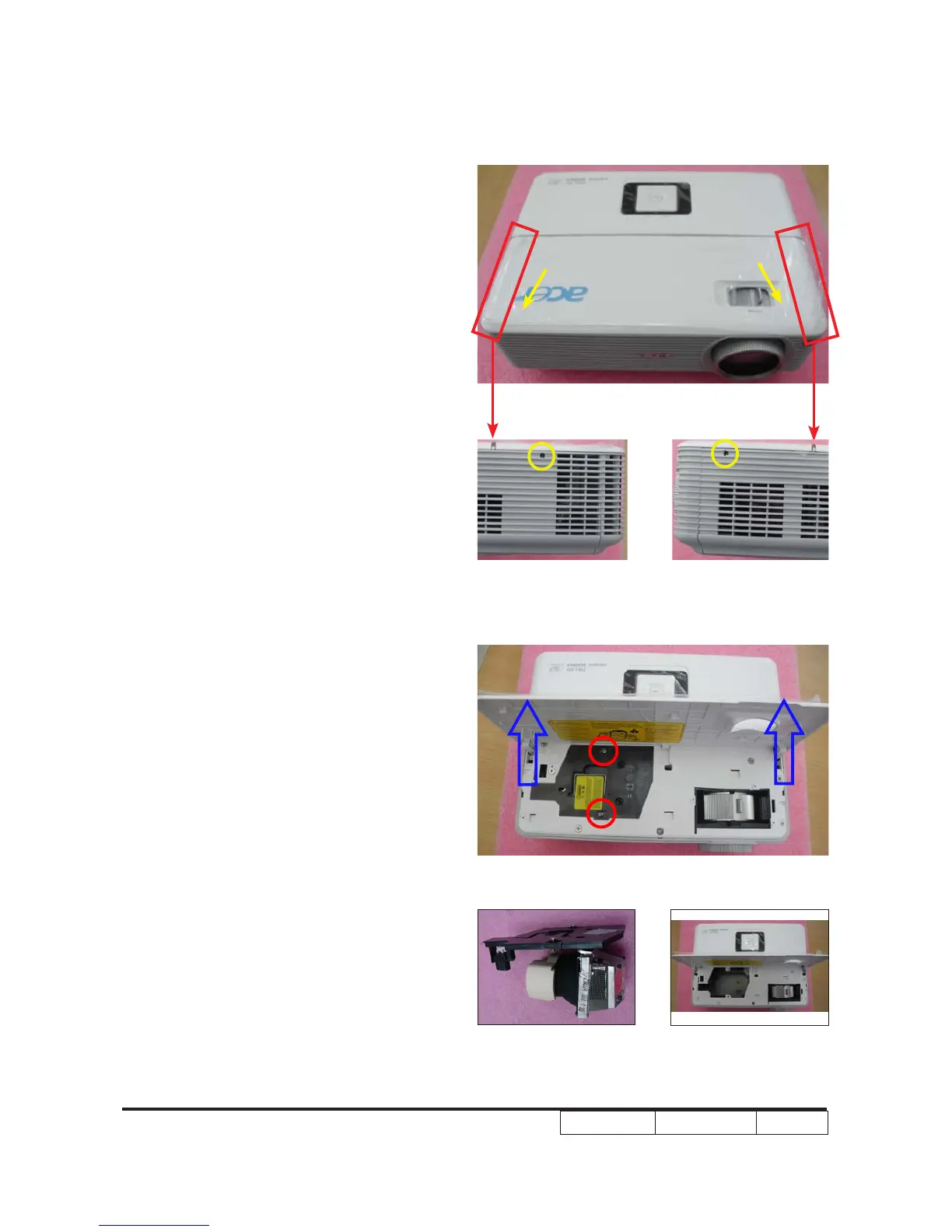

1. Loosen 2 screws on the side cover
(as yellow circle).
2. Push forward the Lamp cover moudle
(as yellow arrows) on the left/right side
of the projector.
