3. Unplug 2 connectors (as pink square).
4. Unscrew 2 screws (as blue circle) and
unfasten 2 tenons (as yellow square)
5. Unplug 1 Lamp cable (as green square)
to separate Lamp driver and Lamp
driver holder.
2-12 Disassemble Lamp
driver module and
Interrupt switch

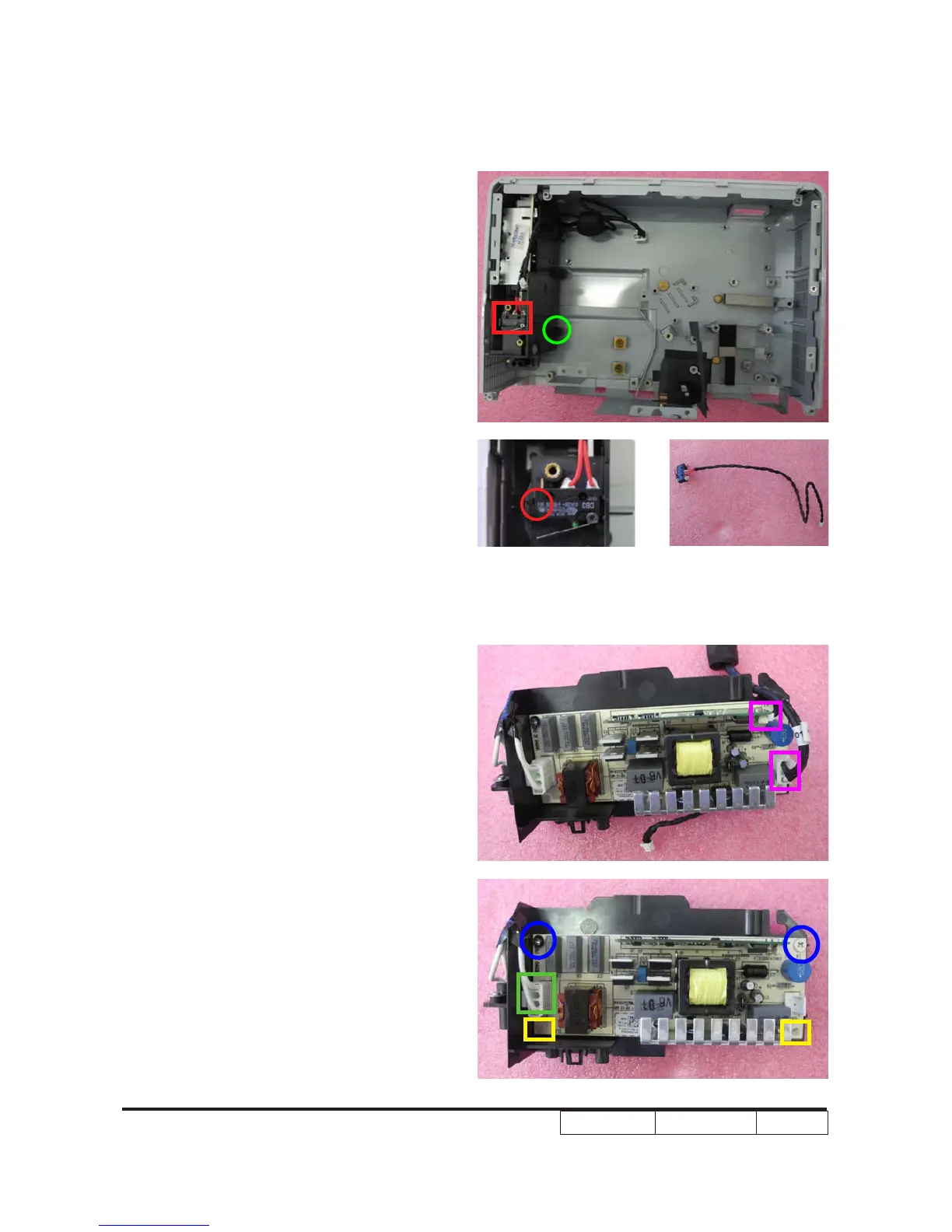

1. Take off the Interrupt switch (as red
square).
Note:
use a tweezers to open 1
hook on the
Lamp driver module. (as red circle)
2. Unscrew 1 screw (as green circle) to
disassemble the Lamp driver module.
