Acer H6500 - 2-4 Disassemble Keypad board and Zoom ring

Condential
2-4
H6500

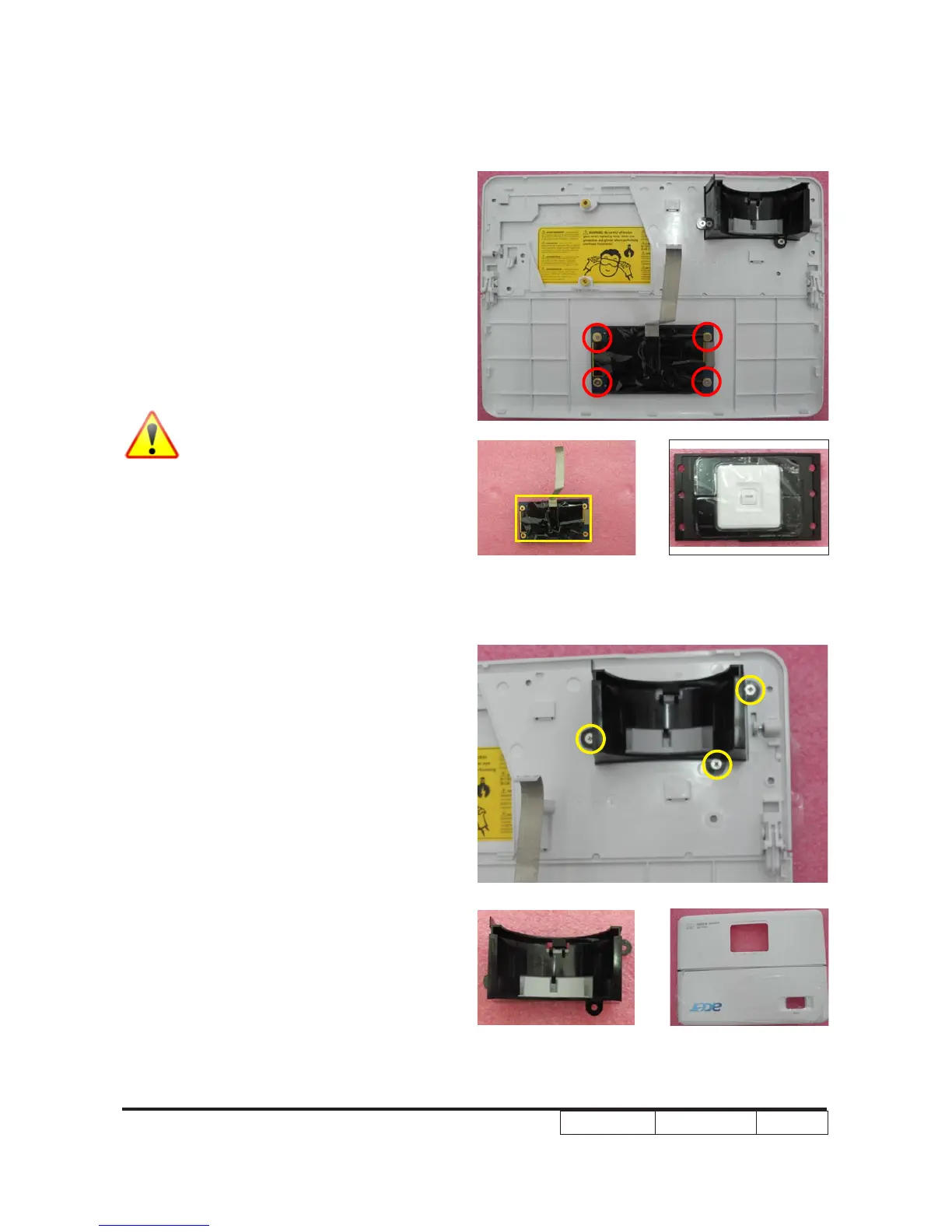

2-4 Disassemble Keypad
board and Zoom ring
1. Unscrew 4 screws (as red circle) to
disassemble the Keypad board module.
2. Separate the Keypad board module and
Keypad module.
3. Unscrew 3 screws (as yellow circle) to
disassemble the Zoom ring module.
NOTE: Circuit boards > 10 cm² has been
highlighted with the yellow rectangle
as above image shows. Please
detach the Circuit boards and follow
local regulations for disposal.
Keypad module
Zoom ring module
Top cover module
Keypad board module
