2-20 Assemble LVPS module

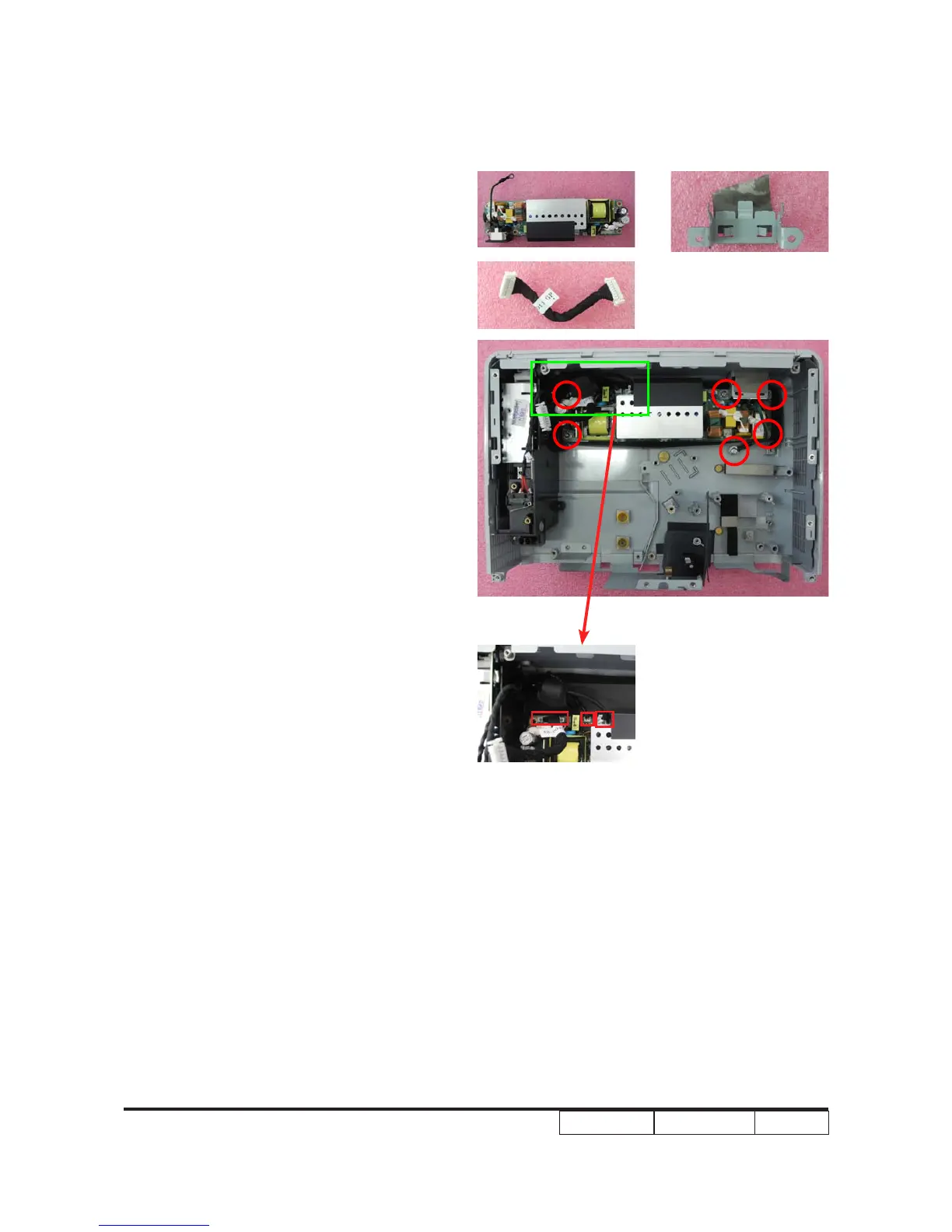

1. Fixed 1 black mylar and the LVPS
module on the bottom module.
2. Fixed the AC Inlet Bracket on LVPS
module.
3. Screw 6 screws (as red circle) to
assemble the LVPS module.
4. Plug 3 connector (as green square).
AC Inlet Bracket
