Acer H6500 - 2-21 Assemble System fan module and the Blower module

Condential
2-26
H6500
2-21 Assemble SystemSystem
fan module and thethe
Blower module

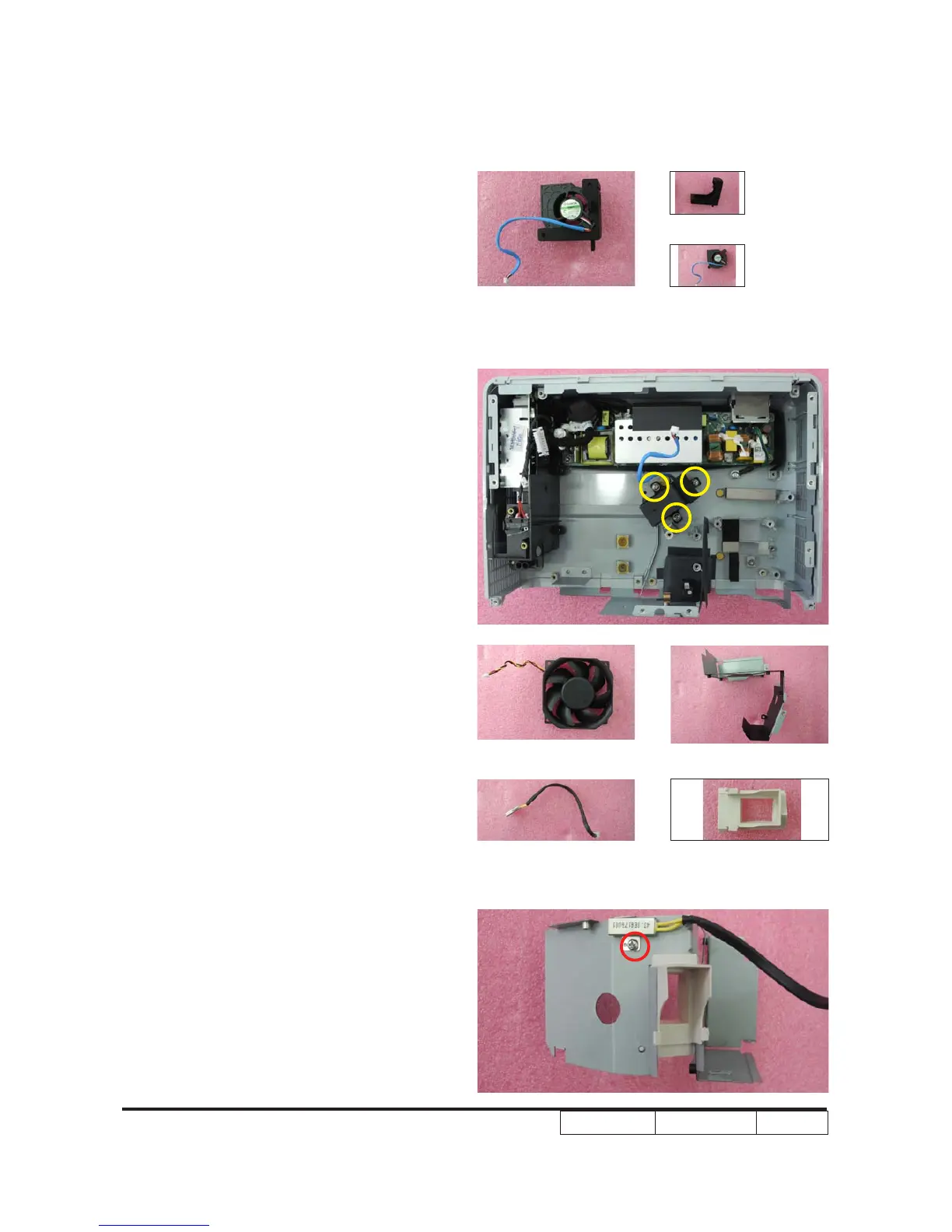

1. Assemble the Blower rubber and the
Blower.
2. Screw 3 screws (as yellow circle) to
assemble the Blower module.
Blower
Blower rubber
Fan shielding
System Fan
3. Assemble Blower bracket and Fan
shielding.
4. Screw 1 screws (as red circle) to
assemble Thermal switch and
Fan shielding module.
Thermal switch
Blower bracket
