2-9
H6500

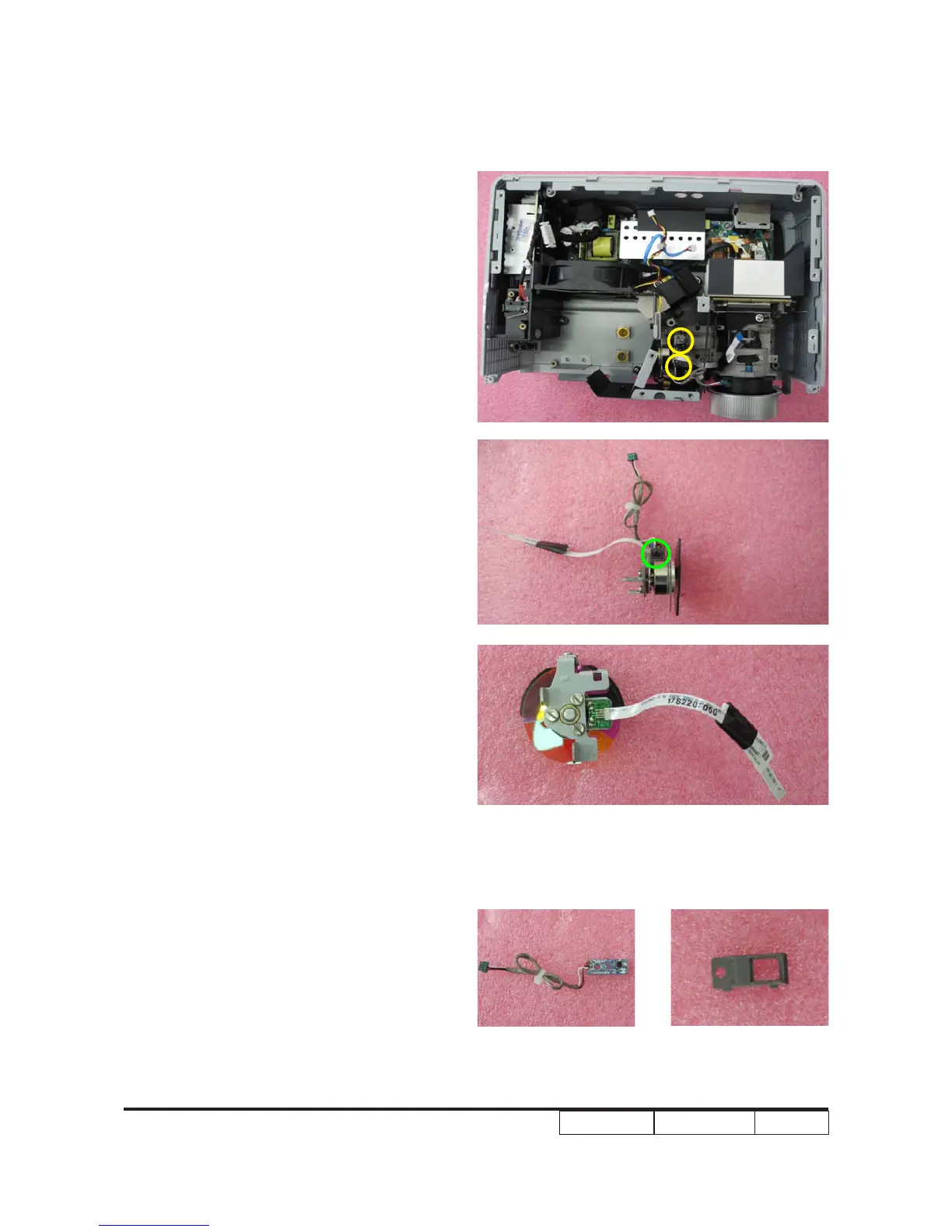

2-7 Disassemble Color
wheel module
1. Unscrew 2 screws (as yellow circle).
2. Remove the Color wheel module. Remove the Color wheel module.
3. Unscrew 1 screw (as green circle).
4. Separate the Photo sensor board,
Photo sensor board cover and Color
wheel module.
Note: - Avoid touching the glass parts of Color
wheel.
Color wheel module
Photo sensor board Photo sensor board cover
