Acer H6500 - 6-5 EDID Key-In Procedure (VGA &HDMI 1 )

H6500
Condential
6-4
6-5 EDID Key-In Procedure
(VGA &HDMI 1 )

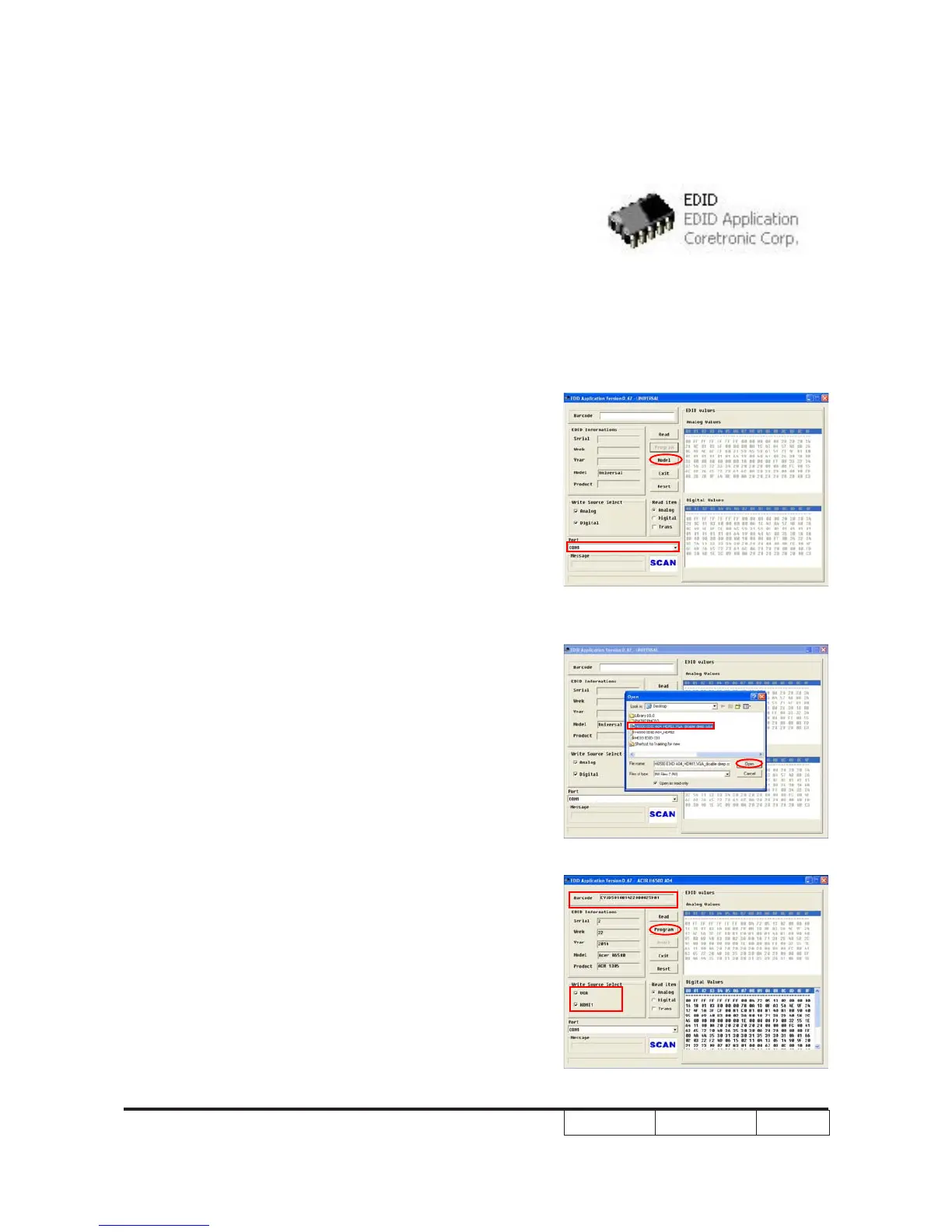

1. Execute EDID Program
- Double click "EDID" to execute EDID
program.
2. Process
(1) Select the COM Port which you are
using.
(2) Click "Model".
(3) Select the EDID le (*-HDMI1.ini).
(4) Click "Open".
(5) Key in the Serial Number into the
Barcode blank space.
(6) In "Write Source Select" item, select
"VGA" and "HDMI 1".
(7) Click "Program".
(1)
(2)
(3)
(4)
(5)
(7)
(6)
