Acer H6500 - 2-8 Disassemble Engine module; 2-9 Disassemble DMD chip and DMD board

Condential
2-10
H6500
2-8 Disassemble Engine
module

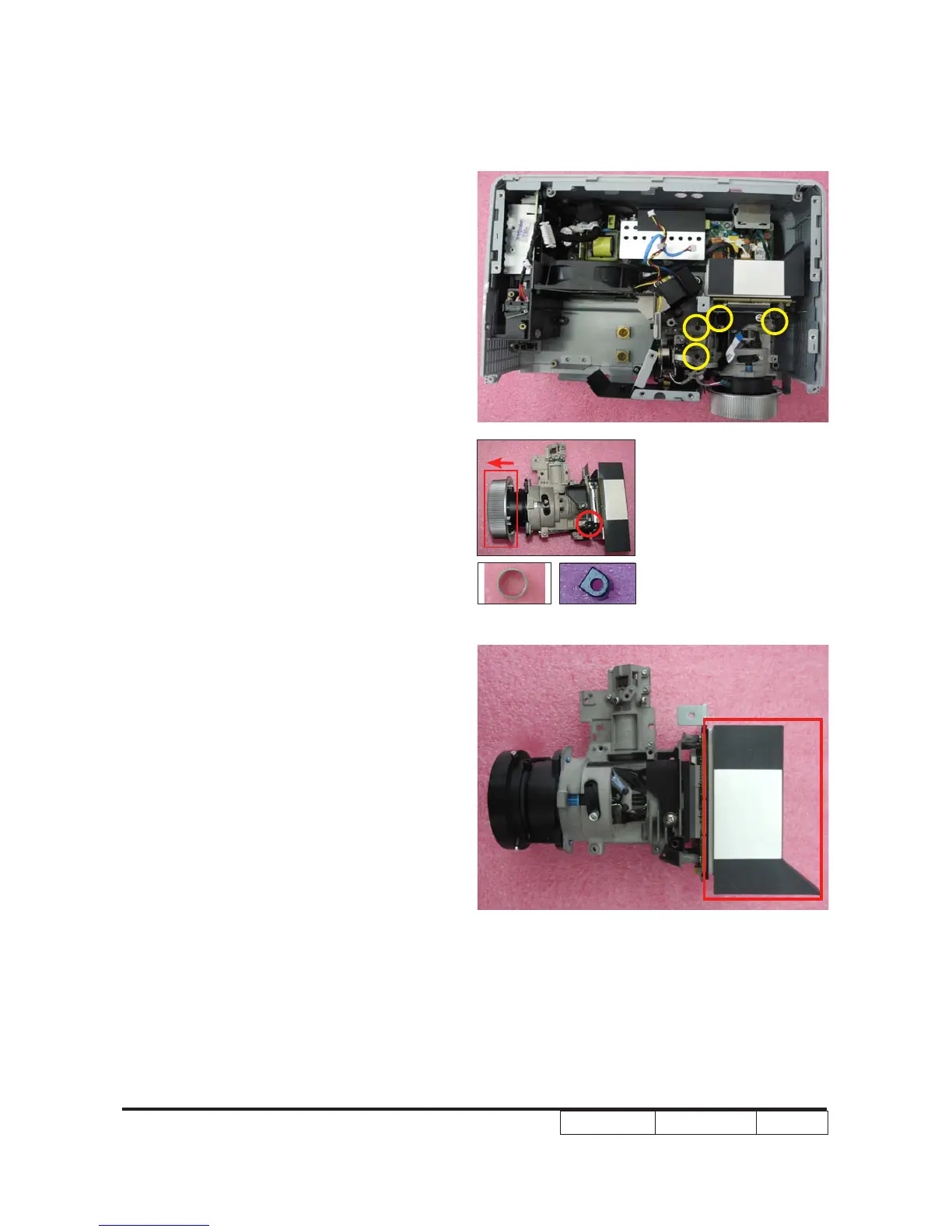

1. Unscrew 4 screws (as yellow circle) to
disassemble the Engine module.
2. Take off the Main broad spacer (as red
circle).
3. Remove Focus ring (as red arrow).
2-9 Disassemble DMD chip
and DMD board
1. Tear off the 2 black heatsink mylar (as
red square).
Main Broad
Spacer
Focus ring
