Acer H6500 - 2-23 Assemble Engine module; 2-24 Assemble Color wheel module

Condential
2-29
H6500

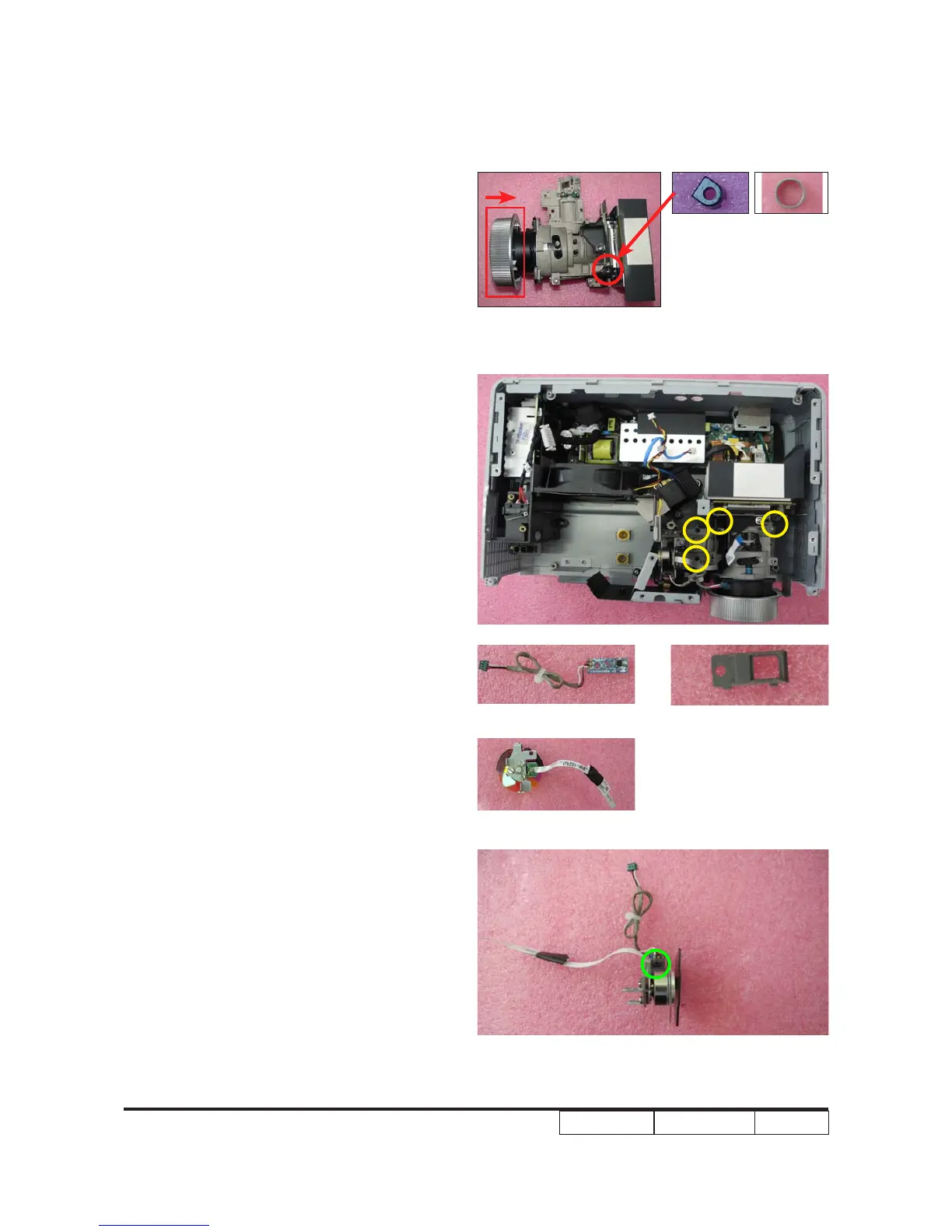

2-23 Assemble Engine
module
1. Place the Main Broad spacer (as red
circle).
2. Assemble Focus ring (as red square).
3. Screw 4 screws (as yellow circle) to
assemble the Engine Module.
2-24 Assemble Color wheel
module
1. Assemble the Photo sensor board,
Photo sensor cover and Color
wheel.
2. Screw 1 screw (as green circle).
Color wheel module
Photo sensor board
Photo sensor board cover
Main Broad
Spacer
Focus ring
