Acer H6500 - 2-25 Assemble Front cover module

Condential
2-30
H6500

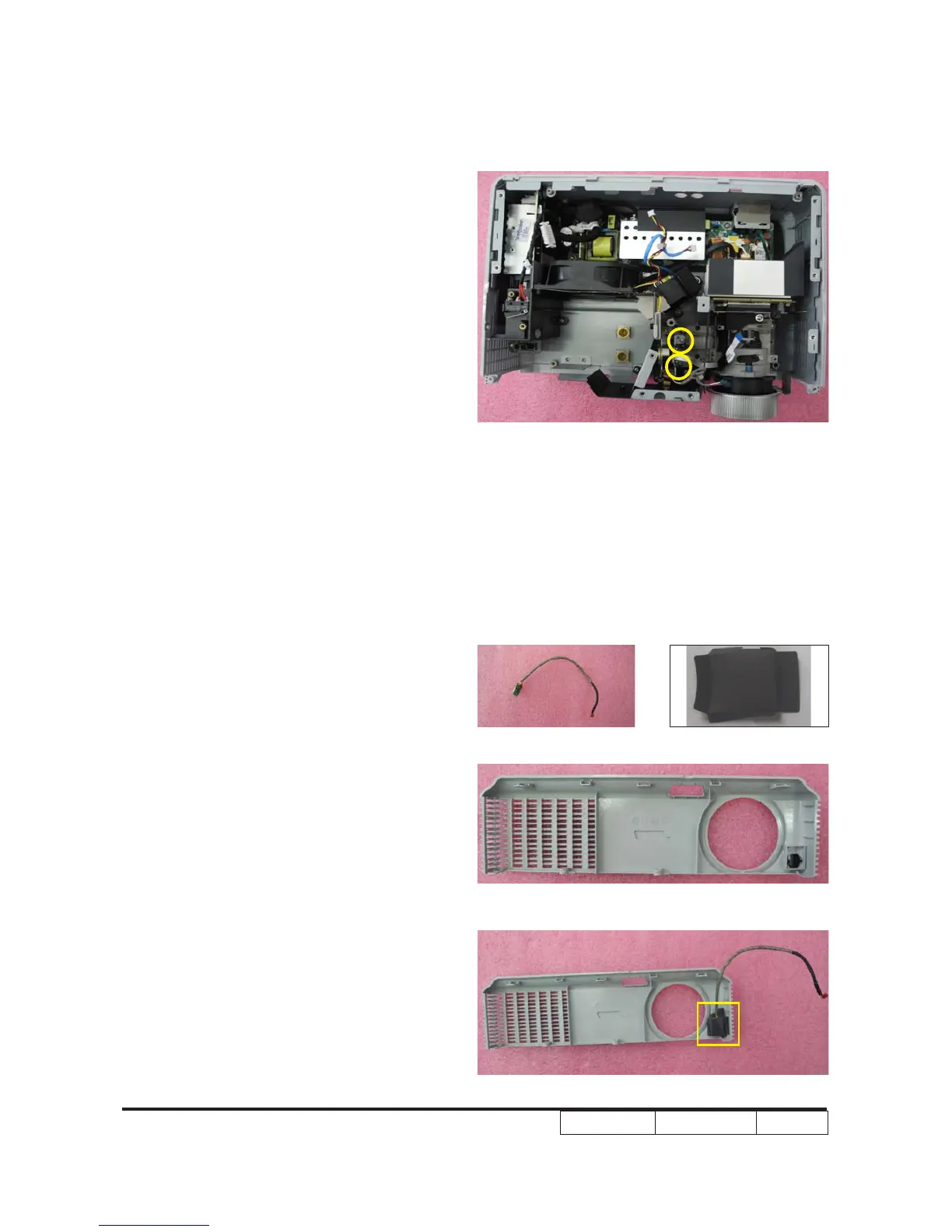

3. Screw 2 screws (as yellow circle) to
assemble the color wheel module.
Note: - Avoid touching the glass parts of Color
Wheel.
2-25 Assemble Front cover
module
1. Assemble IR Board on Front Cover.
2. Stick 1 black mylar (as yellow square)
on IR Board.
IR sensor board
Front cover module
