Acer H6500 - 2-17 Assemble Elevator foot rubber; 2-18 Assemble Bottom shielding and IO cover module

Condential
2-22
H6500
2-18 Assemble Bottom
shielding and IO cover
module
1. Fasten 2 tenons (as green rectangle) to
assemble IO cover.
2-17 Assemble ElevatorElevator
foot rubber

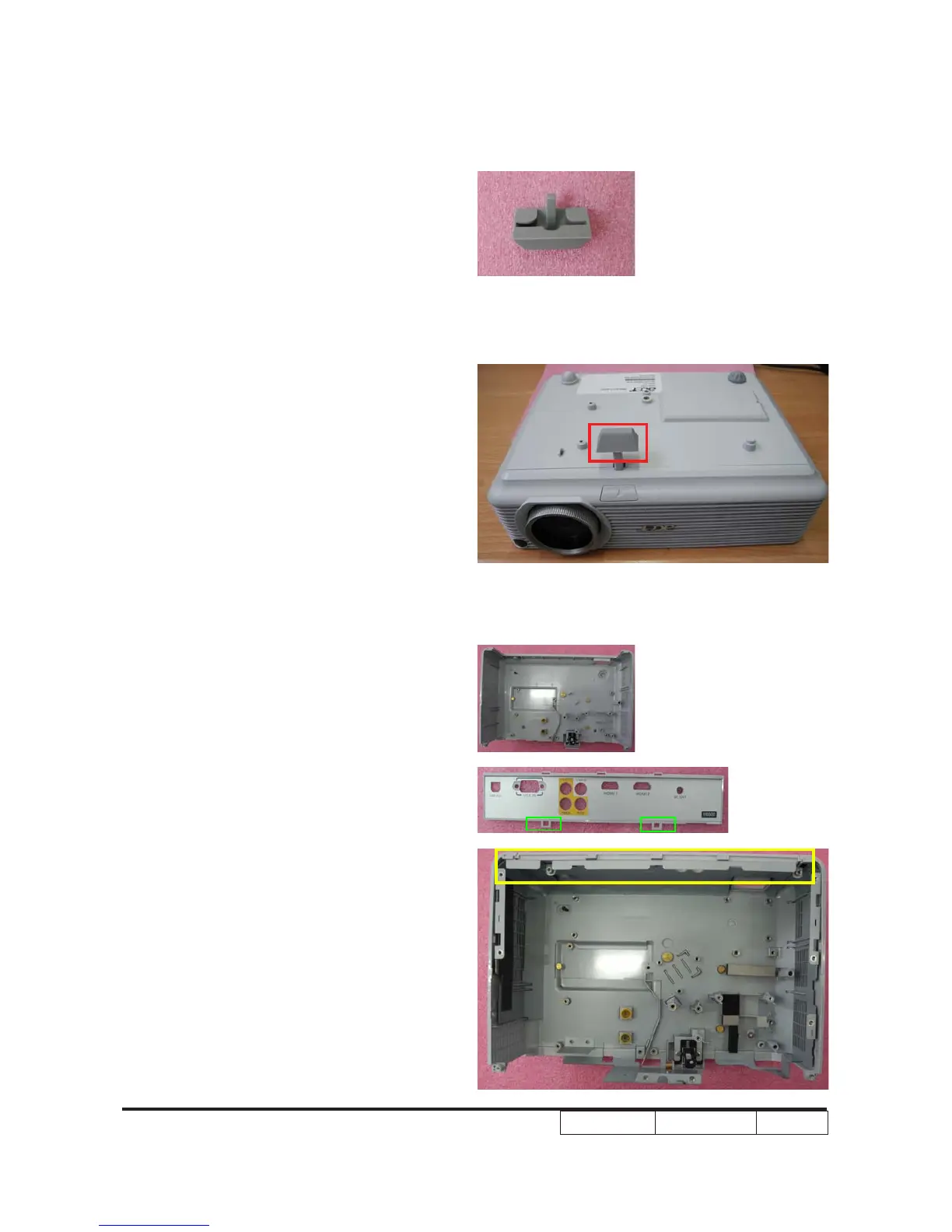

1. Assemble the Elevator foot rubber (as
red rectangle).
