2-13 Disassemble Bottom
shielding and IO cover
module

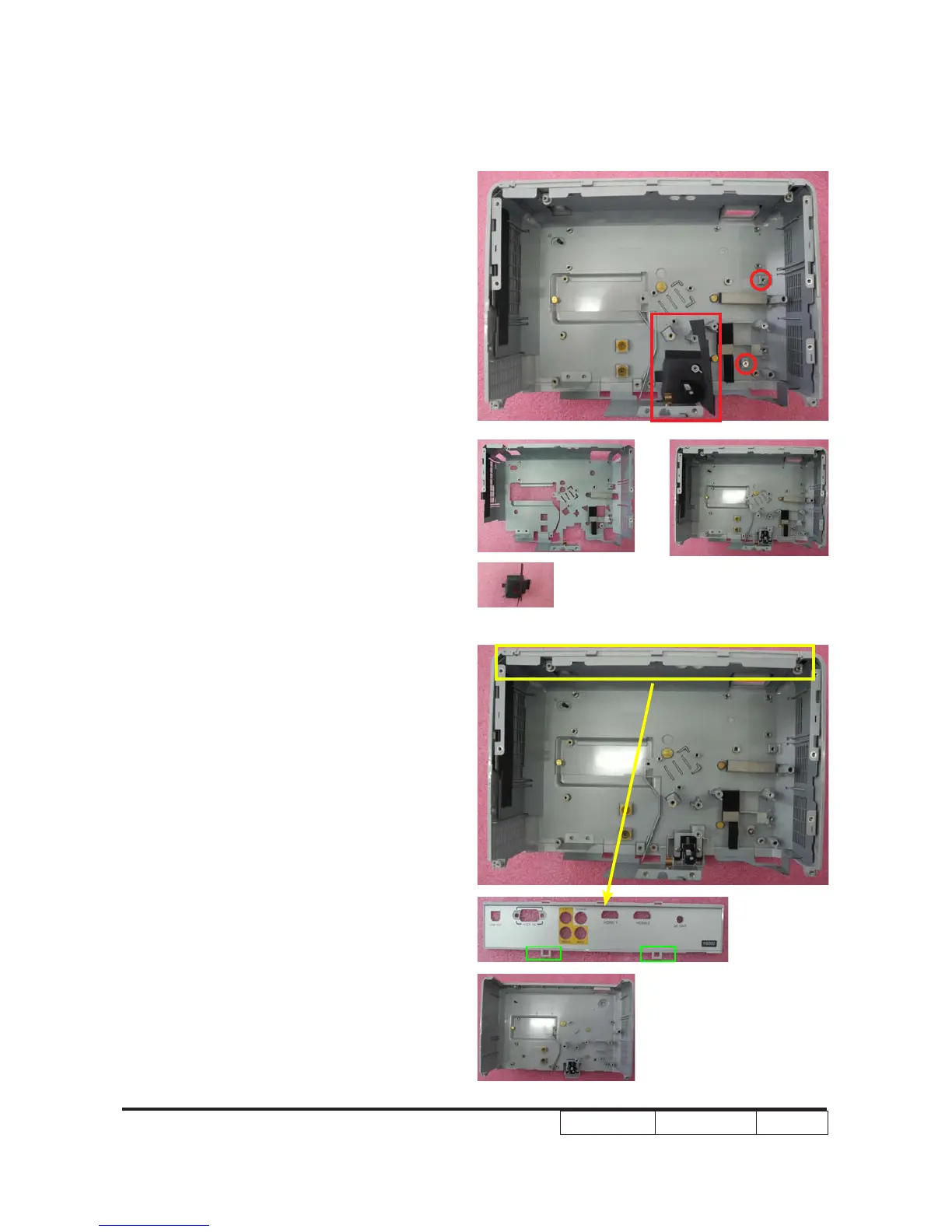

1. Unscrew 2 screws (as red circle) and
tear off 1 black mylar (as red square) to
disassemble bottom shielding.
2. Unfasten 2 tenons (as green rectangle)
to disassemble IO cover module.
