Acer H6500 - 2-22 Assemble DMD chip and DMD board

Condential
2-28
H6500
3. Screw 4 screws (as blue circle).
4. Stick the 2 black heatsink mylar (as red
square).
2-22 Assemble DMD chip
and DMD board

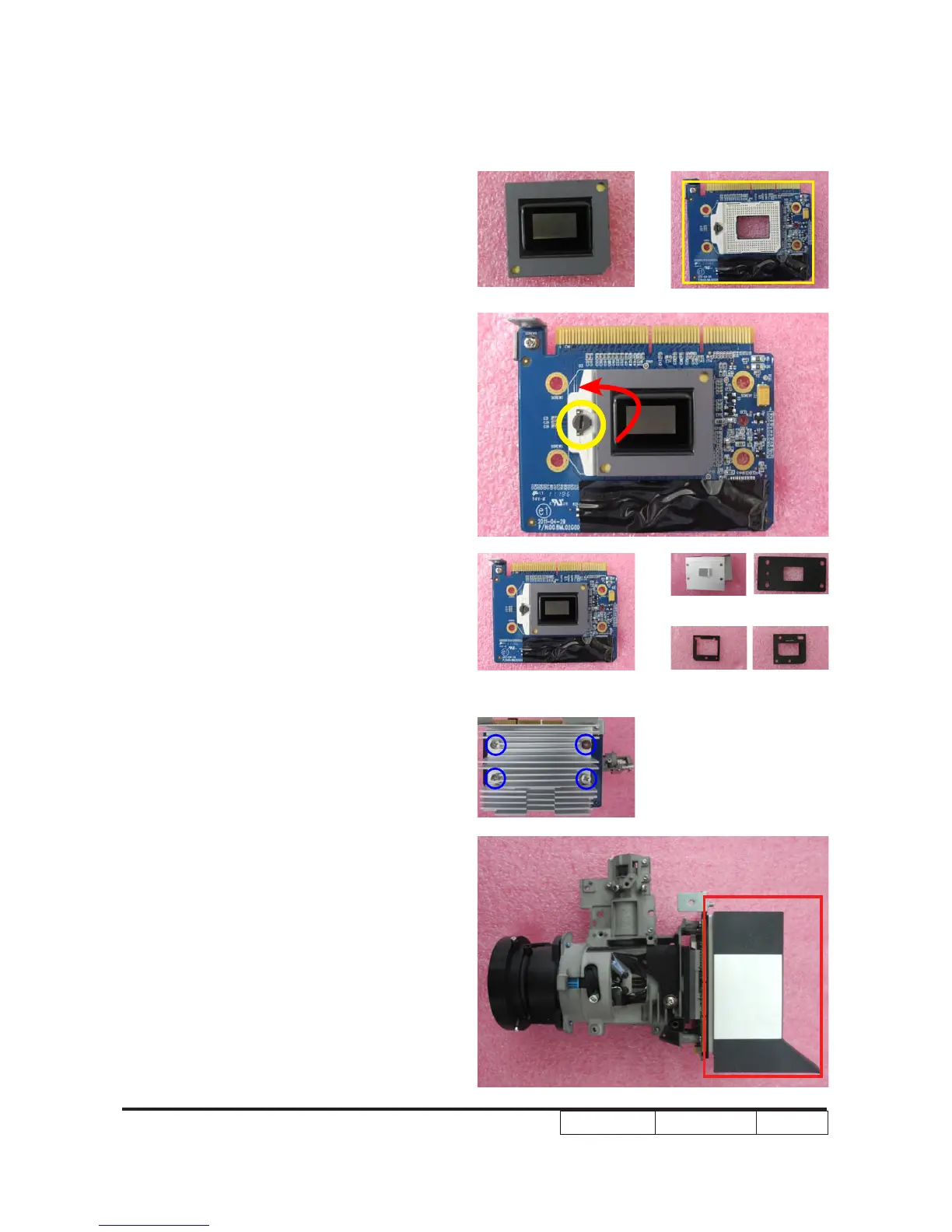

1. Rotate the screw (as yellow circle)
180° clockwise to assemble the DMD
Board and DMD Chip.
2. Assemble the Heat Sink and DMD
Module.
DMD broad module and
DMD chip
Heat sink
DMD heat sink
rubber
DMD rubber DMD mask
DMD chip
DMD board module
