2-28 Assemble Top cover
module

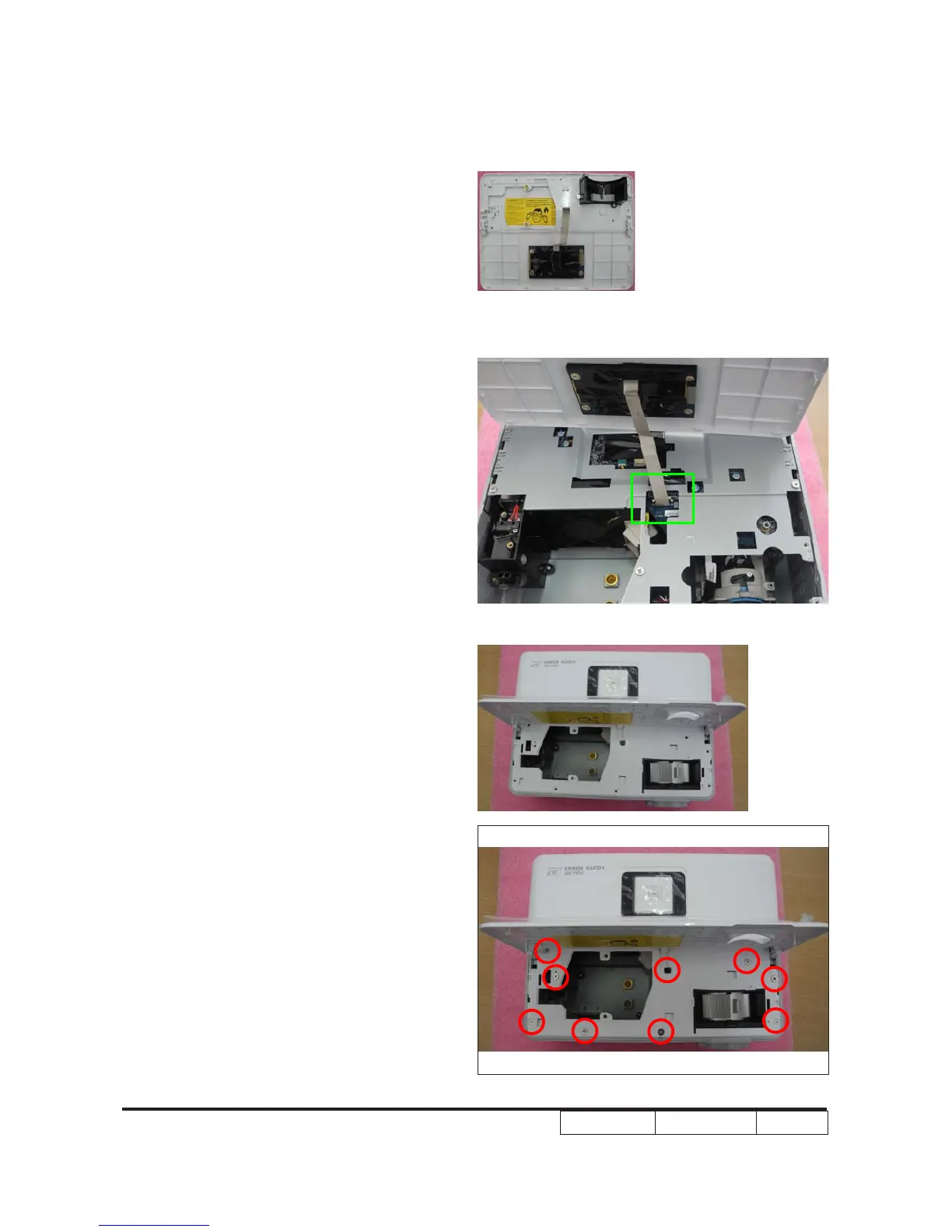

1. Plug the connector (as green square)
to Main board module.
2. Pull downward the top cover module.
3. Screw 9 screws (as red circle) on the
top cover.
