Acer H6500 - Chapter 2 Disassembly & Assembly Process; 2-29 Assemble Lamp module

Condential
2-35
H6500
2-29 Assemble Lamp
module

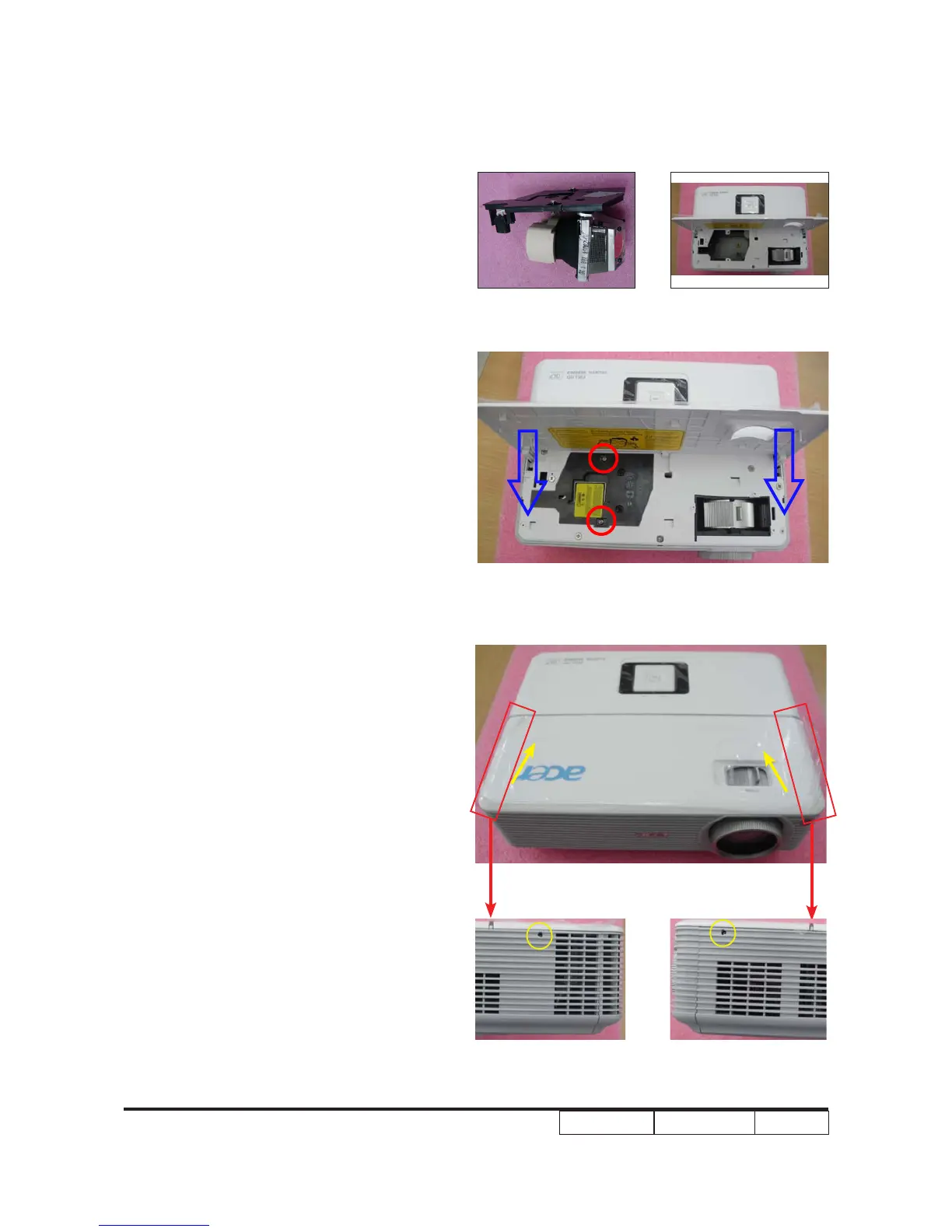

1. Place the Lamp module.
2. Screw 2 screws (as red circle) on the
Lamp module.
3.Pull downward the Lamp cover module
(as blue arrows point).
4. Push backward the Lamp cover moudle
(as yellow arrows ).
5. Screw 2 screw (as yellow circle) to xed
the top cover.
